The Cape dory 27 is a 27.08ft masthead sloop designed by Carl Alberg and built in fiberglass by Cape Dory Yachts between 1977 and 1985.
277 units have been built.
The Cape dory 27 is a very heavy sailboat which is slightly under powered. It is very stable / stiff and has an excellent righting capability if capsized. It is best suited as a bluewater cruising boat. The fuel capacity is originally very small. There is a very short water supply range.
Main features
| Model | Cape dory 27 | ||
| Length | 27.08 ft | ||
| Beam | 8.50 ft | ||
| Draft | 4 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 15.29 | ||
| Ballast / displ. | 40 % | ||
| Displ. / length | 418.53 | ||
| Comfort ratio | 30.28 | ||
| Capsize | 1.74 |
Hull
| Hull type | Monohull long keel | ||
| Construction | Fiberglass | ||
| Waterline length | 20 ft | ||
| Maximum draft | 4 ft | ||
| Displacement | 7500 lbs | ||
| Ballast | 3000 lbs | ||
| Hull speed | 5.99 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt

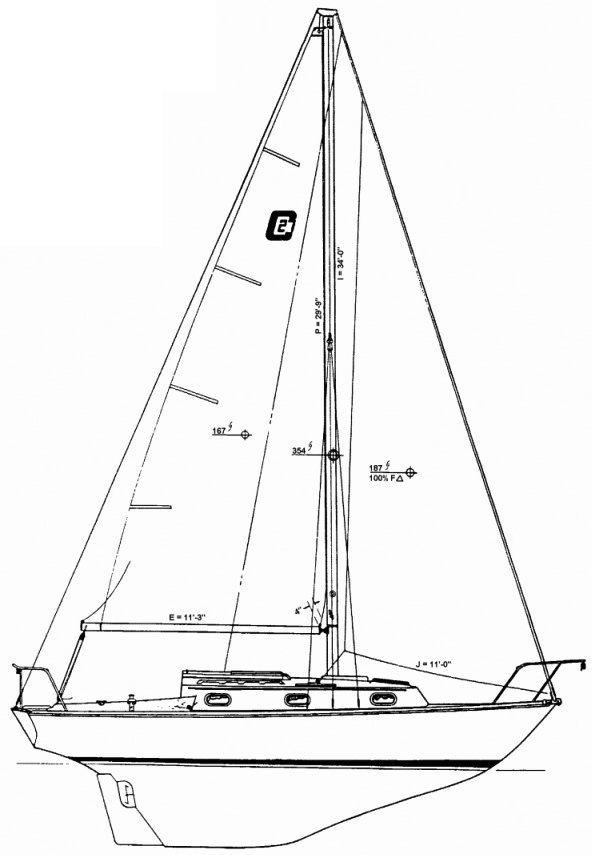

Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 365 sq.ft | ||
| Air draft | 38.60 ft | ||
| Sail area fore | 187 sq.ft | ||
| Sail area main | 167.34 sq.ft | ||
| I | 34 ft | ||
| J | 11 ft | ||
| P | 29.75 ft | ||
| E | 11.25 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 13 gals |
Accommodations
| Water capacity | 24 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Cape Dory Yachts | ||
| Designer | Carl Alberg | ||
| First built | 1977 | ||
| Last built | 1985 | ||
| Number built | 277 |
