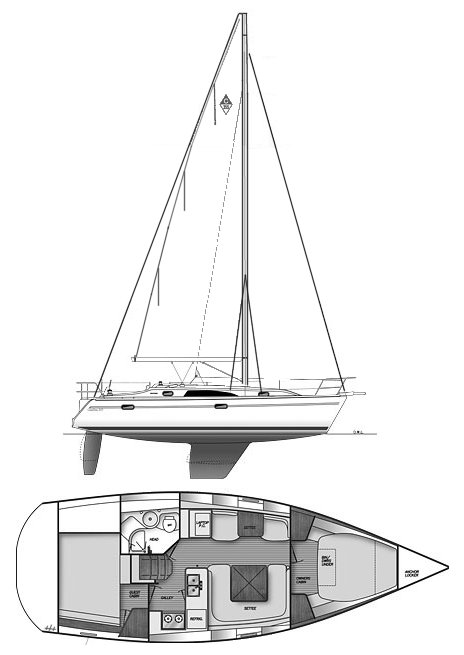

The Catalina 355 is a 35.42ft fractional sloop designed by Gerry Douglas and built in fiberglass since 2008.
The Catalina 355 is a moderate weight sailboat which is a reasonably good performer. It is stable / stiff and has a low righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is originally small. There is a good water supply range.
Main features
| Model | Catalina 355 | ||
| Length | 35.42 ft | ||
| Beam | 12 ft | ||
| Draft | 6.86 ft | ||
| Country | ?? | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 16.01 | ||
| Ballast / displ. | 37.68 % | ||
| Displ. / length | 224.25 | ||
| Comfort ratio | 24.52 | ||
| Capsize | 2.01 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 30.16 ft | ||
| Maximum draft | 6.86 ft | ||
| Displacement | 13781 lbs | ||
| Ballast | 5192 lbs | ||
| Hull speed | 7.36 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 573 sq.ft | ||
| Air draft | 54.75 ft | ||
| Sail area fore | 277.43 sq.ft | ||
| Sail area main | 295.31 sq.ft | ||
| I | 45 ft | ||
| J | 12.33 ft | ||
| P | 43.75 ft | ||
| E | 13.50 ft |
Engine
| Nb engines | 1 | ||
| Total power | 29 HP | ||
| Fuel capacity | 30 gals |
Accommodations
| Water capacity | 107 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | ?? | ||
| Designer | Gerry Douglas | ||
| First built | 2008 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
