Columbia river one design
excluded / 3 - score 0%
It looks like this boat is not adapted to your usage.

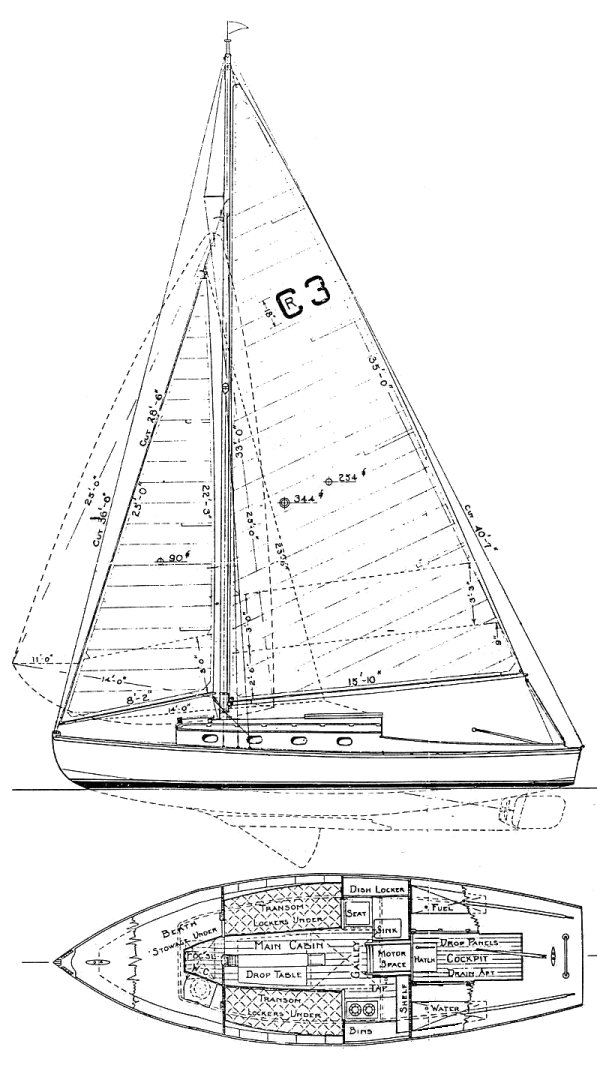

The Columbia river one design is a 27.83ft fractional sloop designed by Joseph M. Dyer and built in wood since 1934.
12 units have been built.
The Columbia river one design is a moderate weight sailboat which is slightly under powered. It is reasonably stable / stiff and has a good righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is originally small. There is a very short water supply range.
Main features
| Model | Columbia river one design | ||
| Length | 27.83 ft | ||
| Beam | 8.83 ft | ||
| Draft | 2.33 ft | ||
| Country | ?? | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 15.09 | ||
| Ballast / displ. | 13.57 % | ||
| Displ. / length | 226.06 | ||
| Comfort ratio | 23.63 | ||
| Capsize | 1.85 |
Hull
| Hull type | Monohull keel with centerboard | ||
| Construction | Wood | ||
| Waterline length | 24 ft | ||
| Maximum draft | 5 ft | ||
| Displacement | 7000 lbs | ||
| Ballast | 950 lbs | ||
| Hull speed | 6.56 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 344 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 20 gals |
Accommodations
| Water capacity | 20 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | ?? | ||
| Designer | Joseph M. Dyer | ||
| First built | 1934 | ||
| Last built | 0 | ?? | |
| Number built | 12 |
