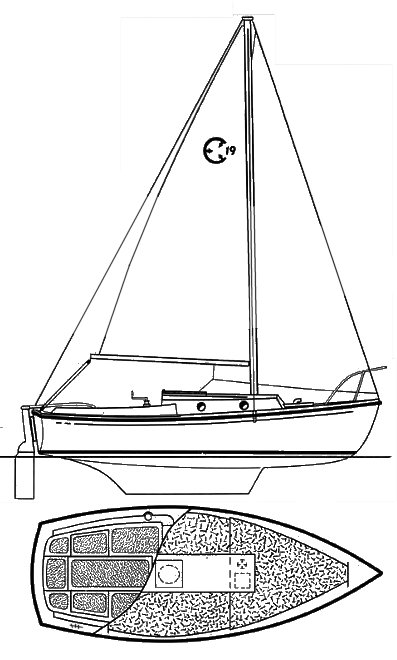

The Com pac 19 is a 19.0ft masthead sloop designed by Bob Johnson and built in fiberglass by Com-Pac Yachts/ Hutchins Co. since 1979.
The Com pac 19 is a moderate weight sailboat which is slightly under powered. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat.
Main features
| Model | Com pac 19 | ||
| Length | 19 ft | ||
| Beam | 7 ft | ||
| Draft | 2 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 14.65 | ||
| Ballast / displ. | 40 % | ||
| Displ. / length | 205.03 | ||
| Comfort ratio | 13.50 | ||
| Capsize | 2.22 |
Hull
| Hull type | Monohull fin keel with transom hung rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 16.33 ft | ||
| Maximum draft | 2 ft | ||
| Displacement | 2000 lbs | ||
| Ballast | 800 lbs | ||
| Hull speed | 5.41 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 145 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 69.82 sq.ft | ||
| Sail area main | 75 sq.ft | ||
| I | 21.75 ft | ||
| J | 6.42 ft | ||
| P | 18.75 ft | ||
| E | 8 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Com-Pac Yachts/ Hutchins Co. | ||
| Designer | Bob Johnson | ||
| First built | 1979 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
