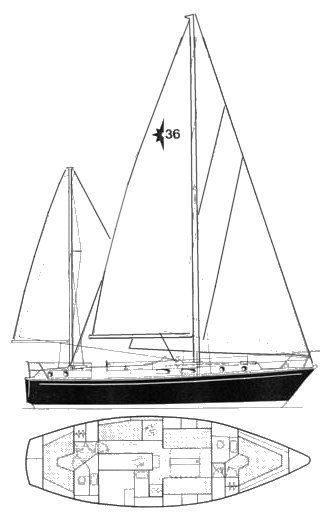

The Conway 36 westerly is a 35.76ft masthead sloop designed by Laurent Giles and partners ltd and built in fiberglass by Westerly Marine Construction Ltd. between 1975 and 1982.
It accomodates 6 people in 2 cabins plus salon.
The Conway 36 westerly is a moderate weight sailboat which is under powered. It is very stable / stiff and has an excellent righting capability if capsized. It is best suited as a bluewater cruising boat. The fuel capacity is originally small. There is a short water supply range.
Main features
| Model | Conway 36 westerly | ||
| Length | 35.76 ft | ||
| Beam | 11.15 ft | ||
| Draft | 6 ft | ||
| Country | United Kingdom (Europe) | ||
| Estimated price | $ 30500 |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 12.69 | ||
| Ballast / displ. | 44.44 % | ||
| Displ. / length | 260.11 | ||
| Comfort ratio | 31.48 | ||
| Capsize | 1.77 |
Hull
| Hull type | Monohull fin keel with rudder on skeg | ||
| Construction | Fiberglass | ||
| Waterline length | 30.25 ft | ||
| Maximum draft | 6 ft | ||
| Displacement | 16115.77 lbs | ||
| Ballast | 7165.01 lbs | ||
| Hull speed | 7.37 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 506.01 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 305.05 sq.ft | ||
| Sail area main | 200.96 sq.ft | ||
| I | 41.99 ft | ||
| J | 14.50 ft | ||
| P | 35.01 ft | ||
| E | 11.52 ft |
Engine
| Nb engines | 1 | ||
| Total power | 43 HP | ||
| Fuel capacity | 42 gals |
Accommodations
| Water capacity | 75 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 2 | ||
| Nb of berths | 6 | ||
| Nb heads | 1 |
Builder data
| Builder | Westerly Marine Construction Ltd. | ||
| Designer | Laurent Giles and partners ltd | ||
| First built | 1975 | ||
| Last built | 1982 | ||
| Number built | 0 | ?? |
