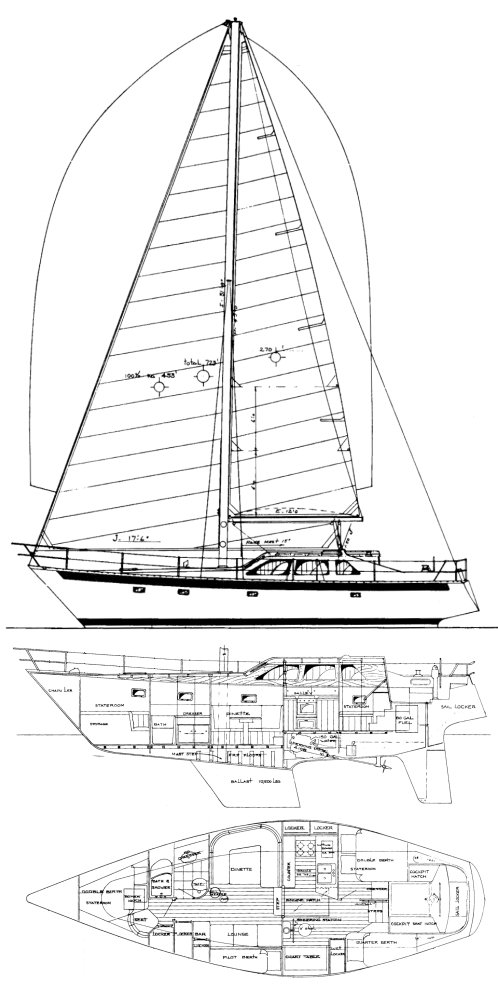

The Cooper 416 is a 41.5ft masthead sloop designed by Stan Huntingford and built in fiberglass by Cooper Enterprises Inc. (CAN) since 1978.
The Cooper 416 is a heavy sailboat which is under powered. It is very stable / stiff and has a good righting capability if capsized. It is best suited as a bluewater cruising boat. The fuel capacity is good. There is a good water supply range.
Main features
| Model | Cooper 416 | ||
| Length | 41.50 ft | ||
| Beam | 14 ft | ||
| Draft | 6.58 ft | ||
| Country | Canada (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 13.96 | ||
| Ballast / displ. | 43.75 % | ||
| Displ. / length | 312.11 | ||
| Comfort ratio | 31.36 | ||
| Capsize | 1.95 |
Hull
| Hull type | Monohull fin keel with rudder on skeg | ||
| Construction | Fiberglass | ||
| Waterline length | 32.50 ft | ||
| Maximum draft | 6.58 ft | ||
| Displacement | 24000 lbs | ||
| Ballast | 10500 lbs | ||
| Hull speed | 7.64 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 723 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 453.25 sq.ft | ||
| Sail area main | 270 sq.ft | ||
| I | 51.80 ft | ||
| J | 17.50 ft | ||
| P | 45 ft | ||
| E | 12 ft |
Engine
| Nb engines | 1 | ||
| Total power | 48 HP | ||
| Fuel capacity | 100 gals |
Accommodations
| Water capacity | 150 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Cooper Enterprises Inc. (CAN) | ||
| Designer | Stan Huntingford | ||
| First built | 1978 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
