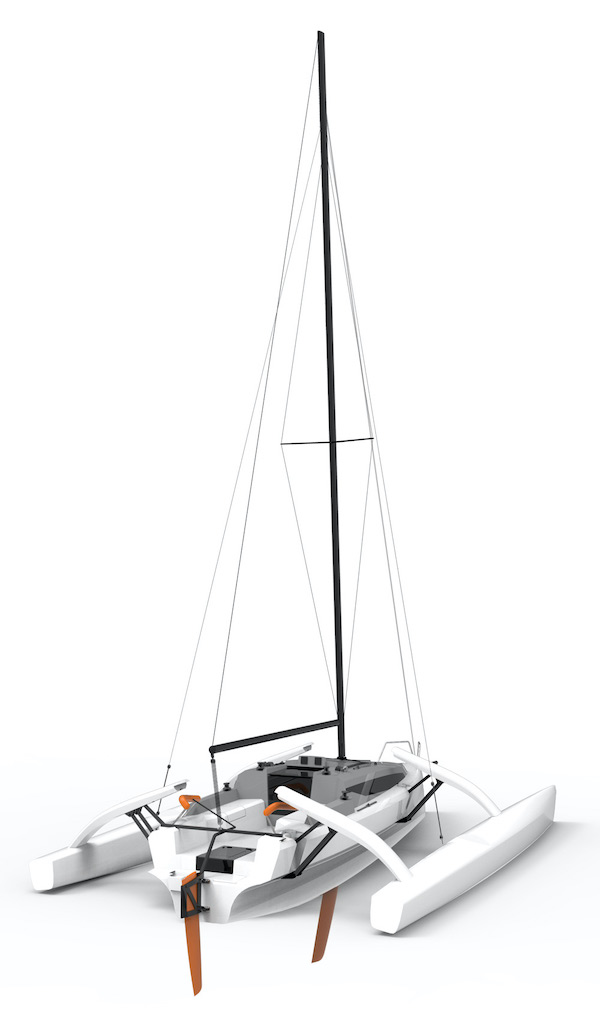

The Corsair 880 is a 28.87ft frac. sloop (rotating spar) designed by Pérus. Scolari. Hertwig. Yacht Design Collective and built in fiberglass sandwich e-glass by Corsair Marine since 2019.
It accomodates 4 people in 1 cabins plus salon.
The Corsair 880 is an ultralight sailboat which is a very high performer. There is a very short water supply range.
Main features
| Model | Corsair 880 | ||
| Length | 28.87 ft | ||
| Beam | 22.31 ft | ||
| Draft | 1.48 ft | ||
| Country | Viet Nam (Asia) | ||
| Estimated price | $ 132600 |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 37.36 | ||
| Ballast / displ. | 0 % | ||
| Displ. / length | 75.31 | ||
| Comfort ratio | 3.21 | ||
| Capsize | 5.79 |
Hull
| Hull type | Trimaran daggerboard | ||
| Construction | Fiberglass sandwich E-Glass | ||
| Waterline length | 27.89 ft | ||
| Maximum draft | 5.25 ft | ||
| Displacement | 3659.67 lbs | ||
| Ballast | 0 lbs | ||
| Hull speed | 7.08 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Frac. Sloop (Rotating Spar) | ||
| Sail area (100%) | 554.34 sq.ft | ||
| Air draft | 39.37 ft | ||
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 9.90 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 8.98 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 1 | ||
| Nb of berths | 4 | ||
| Nb heads | 1 |
Builder data
| Builder | Corsair Marine | ||
| Designer | Pérus. Scolari. Hertwig. Yacht Design Collective | ||
| First built | 2019 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
