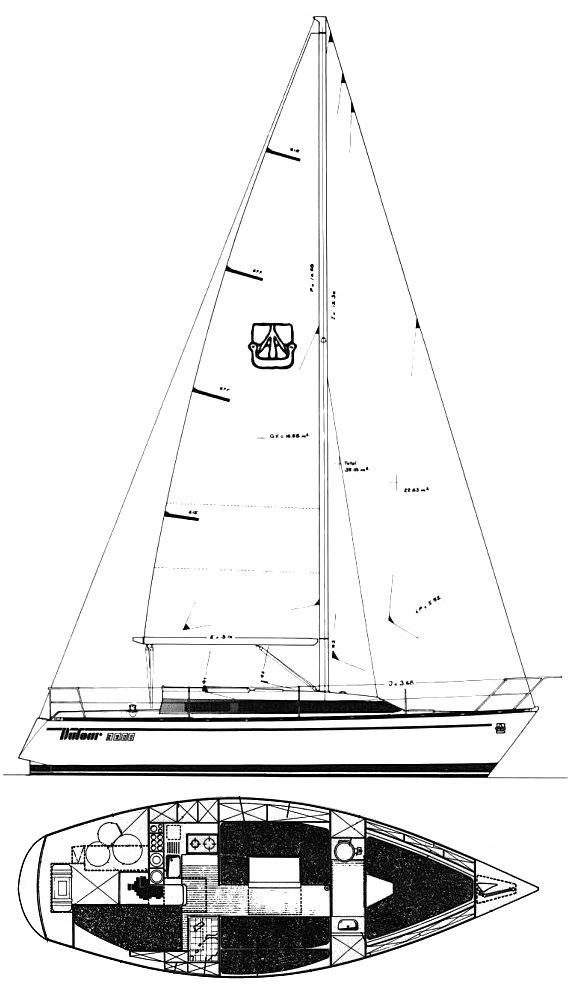

The Dufour 3800 is a 30.67ft masthead sloop designed by German Frers and built in fiberglass by Dufour Yachts (FRA) between 1980 and 1984.
The Dufour 3800 is a moderate weight sailboat which is a reasonably good performer. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is originally very small. There is a very short water supply range.
Main features
| Model | Dufour 3800 | ||
| Length | 30.67 ft | ||
| Beam | 10.66 ft | ||
| Draft | 5.58 ft | ||
| Country | France (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 17.11 | ||
| Ballast / displ. | 44.86 % | ||
| Displ. / length | 231.56 | ||
| Comfort ratio | 20.55 | ||
| Capsize | 2.10 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 25.26 ft | ||
| Maximum draft | 5.58 ft | ||
| Displacement | 8360 lbs | ||
| Ballast | 3750 lbs | ||
| Hull speed | 6.73 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 439 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 243.45 sq.ft | ||
| Sail area main | 195.29 sq.ft | ||
| I | 40.34 ft | ||
| J | 12.07 ft | ||
| P | 35.03 ft | ||
| E | 11.15 ft |
Engine
| Nb engines | 1 | ||
| Total power | 8 HP | ||
| Fuel capacity | 12 gals |
Accommodations
| Water capacity | 28 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Dufour Yachts (FRA) | ||
| Designer | German Frers | ||
| First built | 1980 | ||
| Last built | 1984 | ||
| Number built | 0 | ?? |
