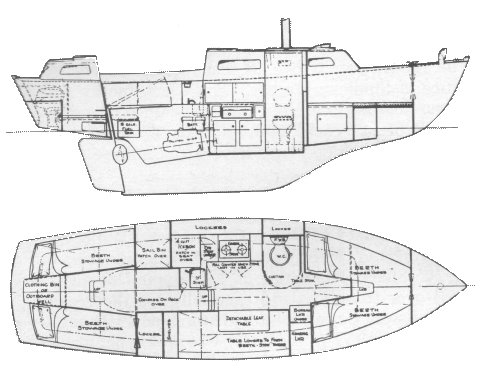

The Eagle 27 is a 27.0ft masthead sloop designed by MacLear & Harris and built in fiberglass by Grampian Marine between 1963 and 1967.
The Eagle 27 is a moderate weight sailboat which is a reasonably good performer. It is reasonably stable / stiff and has a good righting capability if capsized. It is best suited as a coastal cruiser.
Main features
| Model | Eagle 27 | ||
| Length | 27 ft | ||
| Beam | 8.33 ft | ||
| Draft | 3.67 ft | ||
| Country | Canada (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 16.53 | ||
| Ballast / displ. | 0 % | ||
| Displ. / length | 282.72 | ||
| Comfort ratio | 24.03 | ||
| Capsize | 1.84 |
Hull
| Hull type | Monohull long keel | ||
| Construction | Fiberglass | ||
| Waterline length | 21.16 ft | ||
| Maximum draft | 3.67 ft | ||
| Displacement | 6000 lbs | ||
| Ballast | 0 lbs | ||
| Hull speed | 6.16 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 340 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Grampian Marine | ||
| Designer | MacLear & Harris | ||
| First built | 1963 | ||
| Last built | 1967 | ||
| Number built | 0 | ?? |
