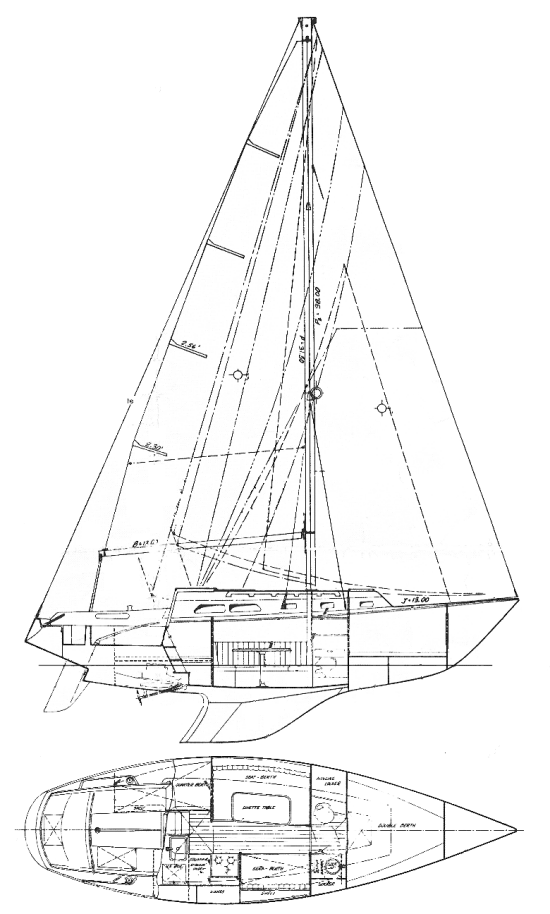

The Ericson 32 2 is a 31.58ft masthead sloop designed by Bruce King and built in fiberglass by Ericson Yachts (USA) between 1969 and 1978.
470 units have been built.
The Ericson 32 2 is a moderate weight sailboat which is a reasonably good performer. It is very stable / stiff and has a good righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is originally small. There is a very short water supply range.
Main features
| Model | Ericson 32 2 | ||
| Length | 31.58 ft | ||
| Beam | 9.67 ft | ||
| Draft | 4.92 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 17.02 | ||
| Ballast / displ. | 45.45 % | ||
| Displ. / length | 284.18 | ||
| Comfort ratio | 25.20 | ||
| Capsize | 1.88 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 24 ft | ||
| Maximum draft | 4.92 ft | ||
| Displacement | 8800 lbs | ||
| Ballast | 4000 lbs | ||
| Hull speed | 6.56 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 452 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 247 sq.ft | ||
| Sail area main | 204.75 sq.ft | ||
| I | 38 ft | ||
| J | 13 ft | ||
| P | 31.50 ft | ||
| E | 13 ft |
Engine
| Nb engines | 1 | ||
| Total power | 30 HP | ||
| Fuel capacity | 25 gals |
Accommodations
| Water capacity | 30 gals | ||
| Headroom | 6.17 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Ericson Yachts (USA) | ||
| Designer | Bruce King | ||
| First built | 1969 | ||
| Last built | 1978 | ||
| Number built | 470 |
