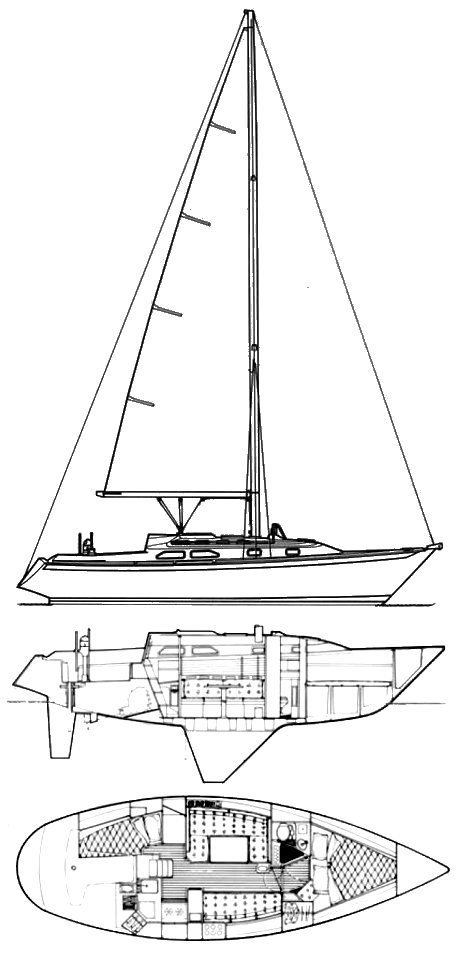

The Ericson 32 3 is a 32.5ft masthead sloop designed by Bruce King and built in fiberglass by Ericson Yachts (USA) since 1985.
The Ericson 32 3 is a moderate weight sailboat which is a reasonably good performer. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is originally small. There is a very short water supply range.
Main features
| Model | Ericson 32 3 | ||
| Length | 32.50 ft | ||
| Beam | 10.83 ft | ||
| Draft | 6 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 17.42 | ||
| Ballast / displ. | 42.86 % | ||
| Displ. / length | 253.87 | ||
| Comfort ratio | 22.79 | ||
| Capsize | 2.03 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 25.83 ft | ||
| Maximum draft | 6 ft | ||
| Displacement | 9800 lbs | ||
| Ballast | 4200 lbs | ||
| Hull speed | 6.81 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 497 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 289.80 sq.ft | ||
| Sail area main | 207 sq.ft | ||
| I | 42 ft | ||
| J | 13.80 ft | ||
| P | 36 ft | ||
| E | 11.50 ft |
Engine
| Nb engines | 1 | ||
| Total power | 21 HP | ||
| Fuel capacity | 22 gals |
Accommodations
| Water capacity | 33 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Ericson Yachts (USA) | ||
| Designer | Bruce King | ||
| First built | 1985 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
