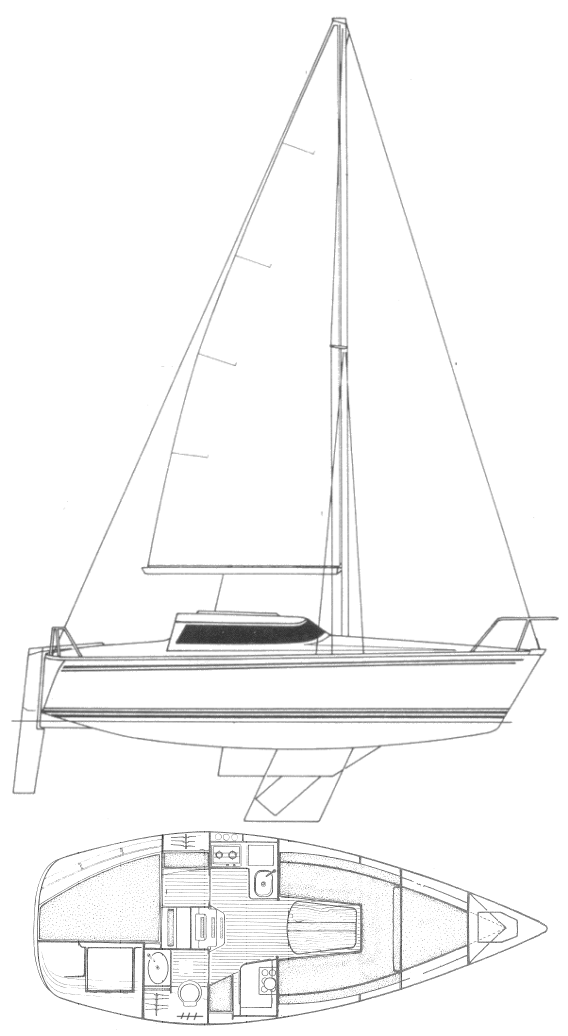

The Fantasia 27 jeanneau cb is a 27.23ft masthead sloop designed by Philippe Harlé and built in fiberglass by Jeanneau (FRA) between 1981 and 1996.
1800 units have been built.
It accomodates 6 people in 2 cabins plus salon.
The Fantasia 27 jeanneau cb is a moderate weight sailboat which is under powered. It is reasonably stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat. The fuel capacity is originally very small. There is a very short water supply range.
Main features
| Model | Fantasia 27 jeanneau cb | ||
| Length | 27.23 ft | ||
| Beam | 9.45 ft | ||
| Draft | 2.62 ft | ||
| Country | France (Europe) | ||
| Estimated price | $ 12200 |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 12.91 | ||
| Ballast / displ. | 34.78 % | ||
| Displ. / length | 249.86 | ||
| Comfort ratio | 18.63 | ||
| Capsize | 2.13 |
Hull
| Hull type | Monohull keel with centerboard | ||
| Construction | Fiberglass | ||
| Waterline length | 21.52 ft | ||
| Maximum draft | 5.64 ft | ||
| Displacement | 5577.69 lbs | ||
| Ballast | 1940.07 lbs | ||
| Hull speed | 6.22 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 252.95 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 160.38 sq.ft | ||
| Sail area main | 121.85 sq.ft | ||
| I | 31.82 ft | ||
| J | 10.07 ft | ||
| P | 26.57 ft | ||
| E | 9.19 ft |
Engine
| Nb engines | 1 | ||
| Total power | 9 HP | ||
| Fuel capacity | 7 gals |
Accommodations
| Water capacity | 13 gals | ||
| Headroom | 5.74 ft | ||
| Nb of cabins | 2 | ||
| Nb of berths | 6 | ||
| Nb heads | 1 |
Builder data
| Builder | Jeanneau (FRA) | ||
| Designer | Philippe Harlé | ||
| First built | 1981 | ||
| Last built | 1996 | ||
| Number built | 1800 |
