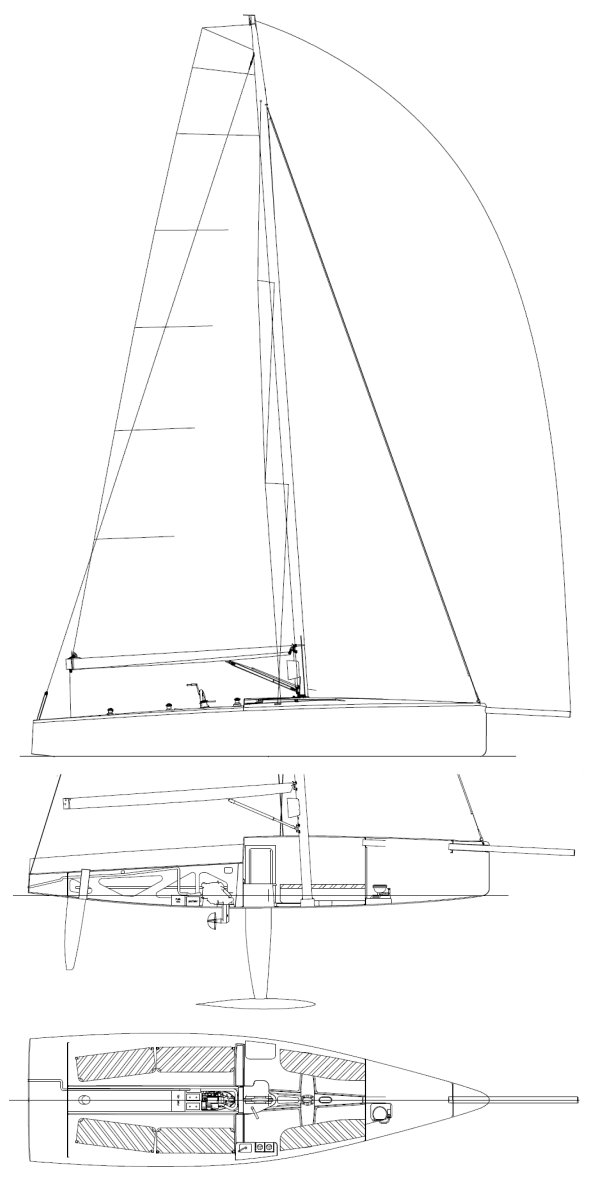

The Farr 400 is a 38.71ft fractional sloop designed by Bruce Farr and built in carbon fiber or composite by Premier Composite Technologies since 2010.
The Farr 400 is an ultralight sailboat which is a very high performer. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a racing boat. The fuel capacity is originally very small. There is a very short water supply range.
Main features
| Model | Farr 400 | ||
| Length | 38.71 ft | ||
| Beam | 11.22 ft | ||
| Draft | 6.50 ft | ||
| Country | Emirates (Middle East) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 41.82 | ||
| Ballast / displ. | 55.61 % | ||
| Displ. / length | 79.86 | ||
| Comfort ratio | 14.38 | ||
| Capsize | 2.19 |
Hull
| Hull type | Monohull lifting keel | ||
| Construction | Carbon fiber or composite | ||
| Waterline length | 36.42 ft | ||
| Maximum draft | 9.51 ft | ||
| Displacement | 8642 lbs | ||
| Ballast | 4806 lbs | ||
| Hull speed | 8.09 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 1097 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 373.61 sq.ft | ||
| Sail area main | 504.10 sq.ft | ||
| I | 51.18 ft | ||
| J | 14.60 ft | ||
| P | 52.98 ft | ||
| E | 19.03 ft |
Engine
| Nb engines | 1 | ||
| Total power | 27 HP | ||
| Fuel capacity | 16 gals |
Accommodations
| Water capacity | 20 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Premier Composite Technologies | ||
| Designer | Bruce Farr | ||
| First built | 2010 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
