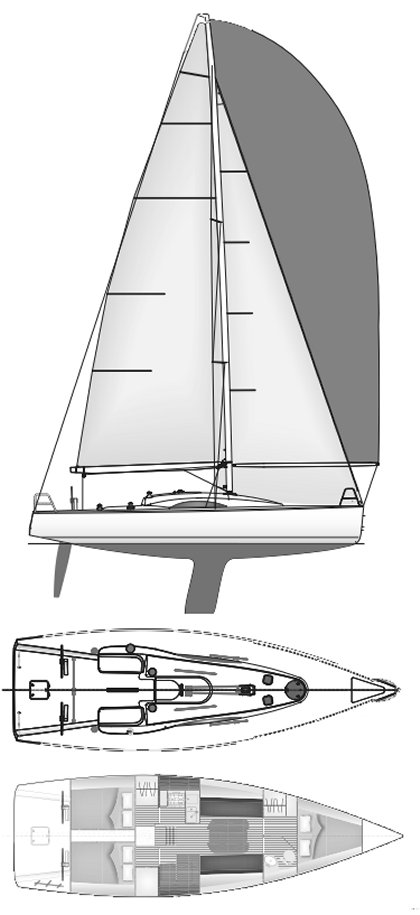

The Archambault 40rc is a 39.3ft fractional sloop designed by Joubert - Nivelt and built in fiberglass by Archambault Boats (FRA) since 2005.
The Archambault 40rc is a light sailboat which is a very high performer. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a fast cruiser. The fuel capacity is originally small. There is a very short water supply range.
Main features
| Model | Archambault 40rc | ||
| Length | 39.30 ft | ||
| Beam | 12.30 ft | ||
| Draft | 8.14 ft | ||
| Country | France (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 22.69 | ||
| Ballast / displ. | 46.61 % | ||
| Displ. / length | 158.29 | ||
| Comfort ratio | 22.25 | ||
| Capsize | 2.01 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 34.58 ft | ||
| Maximum draft | 8.14 ft | ||
| Displacement | 14661 lbs | ||
| Ballast | 6834 lbs | ||
| Hull speed | 7.88 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 847 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 392.28 sq.ft | ||
| Sail area main | 454.28 sq.ft | ||
| I | 50.88 ft | ||
| J | 15.42 ft | ||
| P | 51.77 ft | ||
| E | 17.55 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 20 gals |
Accommodations
| Water capacity | 26 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Archambault Boats (FRA) | ||
| Designer | Joubert - Nivelt | ||
| First built | 2005 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
