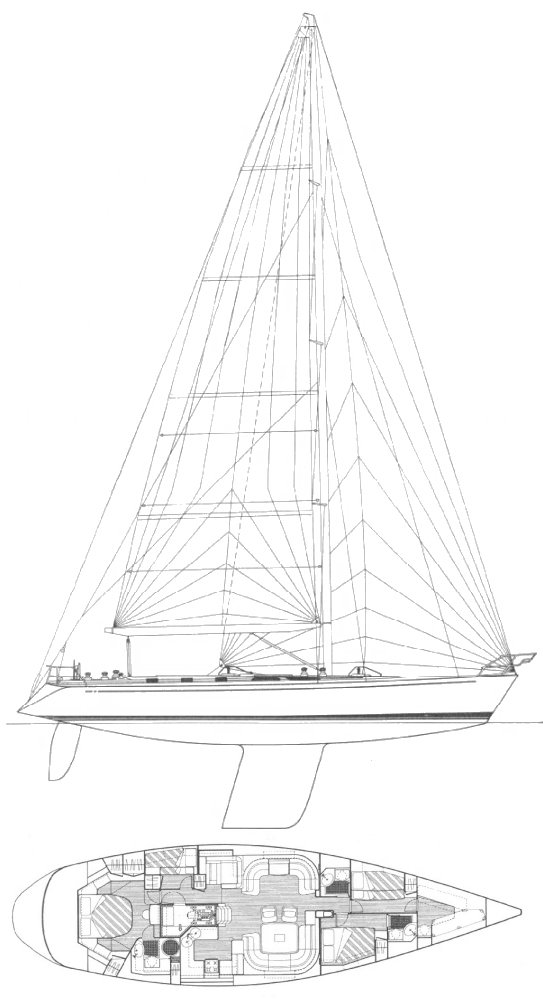

The Grand soleil maxi one is a 63.98ft masthead sloop designed by Bruce Farr and built in fiberglass by Grand Soleil (Cantiere del Pardo) since 2002.
The Grand soleil maxi one is a light sailboat which is a very high performer. It is reasonably stable / stiff and has a good righting capability if capsized. It is best suited as a fast cruiser. The fuel capacity is originally very small. There is an excellent water supply range.
Main features
| Model | Grand soleil maxi one | ||
| Length | 63.98 ft | ||
| Beam | 17.55 ft | ||
| Draft | 8.53 ft | ||
| Country | Italy (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 27.22 | ||
| Ballast / displ. | 32.69 % | ||
| Displ. / length | 188.99 | ||
| Comfort ratio | 35.40 | ||
| Capsize | 1.82 |
Hull
| Hull type | Monohull fin keel with bulb and spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 51.35 ft | ||
| Maximum draft | 8.53 ft | ||
| Displacement | 57320 lbs | ||
| Ballast | 18739 lbs | ||
| Hull speed | 9.60 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 2518 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 125 HP | ||
| Fuel capacity | 1 gals |
Accommodations
| Water capacity | 500 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Grand Soleil (Cantiere del Pardo) | ||
| Designer | Bruce Farr | ||
| First built | 2002 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
