The Hallberg rassy 48 is a 49.18ft masthead sloop designed by German Frers and built in fiberglass by Hallberg Rassy between 2004 and 2013.
69 units have been built.
The Hallberg rassy 48 is a moderate weight sailboat which is a good performer. It is very stable / stiff and has an excellent righting capability if capsized. It is best suited as a bluewater cruising boat. The fuel capacity is excellent. There is an excellent water supply range.
Main features
| Model | Hallberg rassy 48 | ||
| Length | 49.18 ft | ||
| Beam | 14.76 ft | ||
| Draft | 7.71 ft | ||
| Country | Sweden (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 18.01 | ||
| Ballast / displ. | 41.89 % | ||
| Displ. / length | 221.66 | ||
| Comfort ratio | 38.70 | ||
| Capsize | 1.72 |
Hull
| Hull type | Monohull fin keel with rudder on partial skeg | ||
| Construction | Fiberglass | ||
| Waterline length | 43.47 ft | ||
| Maximum draft | 7.71 ft | ||
| Displacement | 40786 lbs | ||
| Ballast | 17086 lbs | ||
| Hull speed | 8.83 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt

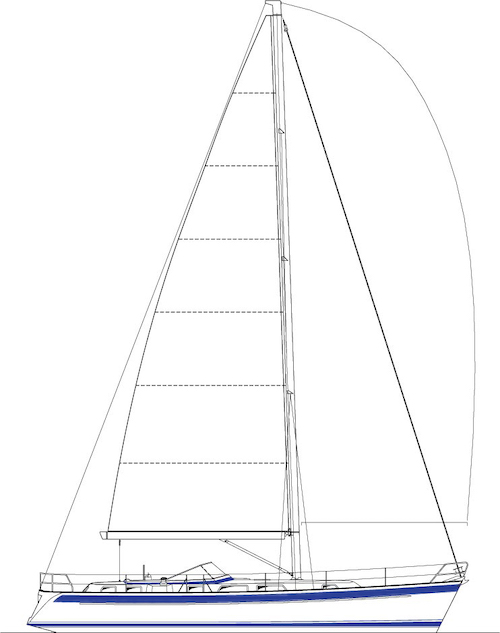

Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 1328.27 sq.ft | ||
| Air draft | 71.36 ft | ||
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 110 HP | ||
| Fuel capacity | 211 gals |
Accommodations
| Water capacity | 240 gals | ||
| Headroom | 6.53 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Hallberg Rassy | ||
| Designer | German Frers | ||
| First built | 2004 | ||
| Last built | 2013 | ||
| Number built | 69 |
