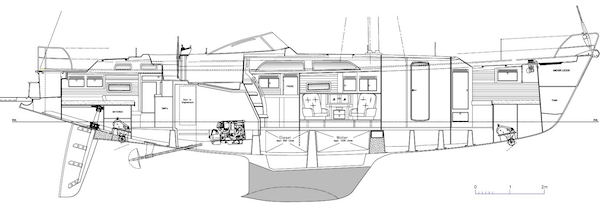

The Hallberg rassy 55 is a 54.72ft masthead sloop designed by German Frers and built in fiberglass by Hallberg Rassy since 2012.
The Hallberg rassy 55 is a moderate weight sailboat which is a reasonably good performer. It is stable / stiff and has an excellent righting capability if capsized. It is best suited as a heavy bluewater cruising boat. The fuel capacity is excellent. There is an excellent water supply range.
Main features
| Model | Hallberg rassy 55 | ||
| Length | 54.72 ft | ||
| Beam | 15.52 ft | ||
| Draft | 7.55 ft | ||
| Country | Sweden (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 17.47 | ||
| Ballast / displ. | 37.07 % | ||
| Displ. / length | 250.59 | ||
| Comfort ratio | 47.21 | ||
| Capsize | 1.61 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 46.92 ft | ||
| Maximum draft | 7.55 ft | ||
| Displacement | 57982 lbs | ||
| Ballast | 21495 lbs | ||
| Hull speed | 9.18 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 1628.58 sq.ft | ||
| Air draft | 80.38 ft | ||
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 180 HP | ||
| Fuel capacity | 238 gals |
Accommodations
| Water capacity | 277 gals | ||
| Headroom | 6.63 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Hallberg Rassy | ||
| Designer | German Frers | ||
| First built | 2012 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
