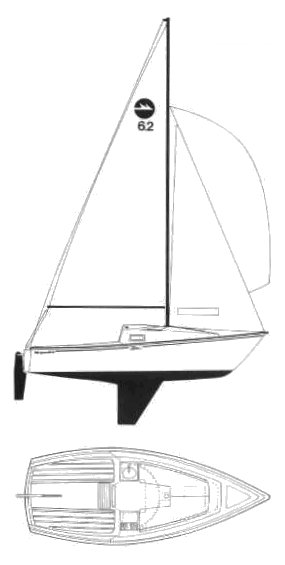

The Harpoon 62 is a 20.33ft fractional sloop designed by C&C Design and built in fiberglass by Boston Whaler (USA) between 1979 and 1983.
150 units have been built.
The Harpoon 62 is a light sailboat which is a very high performer. It is stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat.
Main features
| Model | Harpoon 62 | ||
| Length | 20.33 ft | ||
| Beam | 8 ft | ||
| Draft | 3.50 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 23.64 | ||
| Ballast / displ. | 32.35 % | ||
| Displ. / length | 191.32 | ||
| Comfort ratio | 9.58 | ||
| Capsize | 2.68 |
Hull
| Hull type | Monohull fin keel with transom hung rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 15.83 ft | ||
| Maximum draft | 3.50 ft | ||
| Displacement | 1700 lbs | ||
| Ballast | 550 lbs | ||
| Hull speed | 5.33 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 210 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 73.82 sq.ft | ||
| Sail area main | 115.31 sq.ft | ||
| I | 19.25 ft | ||
| J | 7.67 ft | ||
| P | 22.50 ft | ||
| E | 10.25 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Boston Whaler (USA) | ||
| Designer | C&C Design | ||
| First built | 1979 | ||
| Last built | 1983 | ||
| Number built | 150 |
