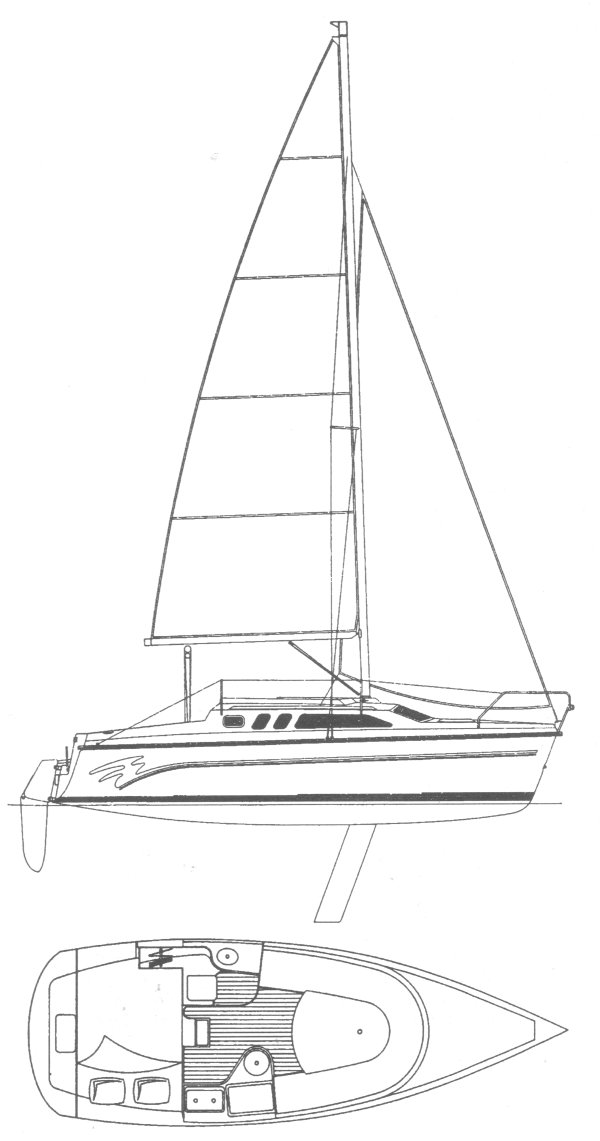

The Hunter 26 is a 25.75ft fractional sloop designed by Rob Mazza and built in fiberglass by Hunter Marine (USA) between 1994 and 1997.
The Hunter 26 is a light sailboat which is a reasonably good performer. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat. There is a very short water supply range.
Main features
| Model | Hunter 26 | ||
| Length | 25.75 ft | ||
| Beam | 9 ft | ||
| Draft | 1.75 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 16.88 | ||
| Ballast / displ. | 43.48 % | ||
| Displ. / length | 165.31 | ||
| Comfort ratio | 15.91 | ||
| Capsize | 2.17 |
Hull
| Hull type | Monohull keel with centerboard | ||
| Construction | Fiberglass | ||
| Waterline length | 23.16 ft | ||
| Maximum draft | 6 ft | ||
| Displacement | 4600 lbs | ||
| Ballast | 2000 lbs | ||
| Hull speed | 6.45 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 291 sq.ft | ||
| Air draft | 40.33 ft | ||
| Sail area fore | 133.43 sq.ft | ||
| Sail area main | 157.92 sq.ft | ||
| I | 28.33 ft | ||
| J | 9.42 ft | ||
| P | 30.08 ft | ||
| E | 10.50 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 5 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Hunter Marine (USA) | ||
| Designer | Rob Mazza | ||
| First built | 1994 | ||
| Last built | 1997 | ||
| Number built | 0 | ?? |
