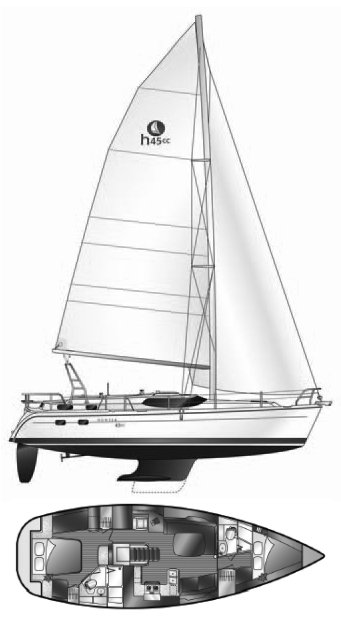

The Hunter 45 cc is a 45.01ft b&r designed by Henderson/Hunter Design Team and built in fiberglass by Hunter Marine (USA) since 2005.
The Hunter 45 cc is a light sailboat which is a reasonably good performer. It is reasonably stable / stiff and has a low righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is average. There is a good water supply range.
Main features
| Model | Hunter 45 cc | ||
| Length | 45.01 ft | ||
| Beam | 14.50 ft | ||
| Draft | 4.99 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 16.59 | ||
| Ballast / displ. | 32.22 % | ||
| Displ. / length | 170.38 | ||
| Comfort ratio | 24.61 | ||
| Capsize | 2.05 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 39.17 ft | ||
| Maximum draft | 4.99 ft | ||
| Displacement | 22937 lbs | ||
| Ballast | 7390 lbs | ||
| Hull speed | 8.39 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | B&R | ||
| Sail area (100%) | 834 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 351.49 sq.ft | ||
| Sail area main | 482.44 sq.ft | ||
| I | 47.92 ft | ||
| J | 14.67 ft | ||
| P | 46.50 ft | ||
| E | 20.75 ft |
Engine
| Nb engines | 1 | ||
| Total power | 75 HP | ||
| Fuel capacity | 76 gals |
Accommodations
| Water capacity | 149 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Hunter Marine (USA) | ||
| Designer | Henderson/Hunter Design Team | ||
| First built | 2005 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
