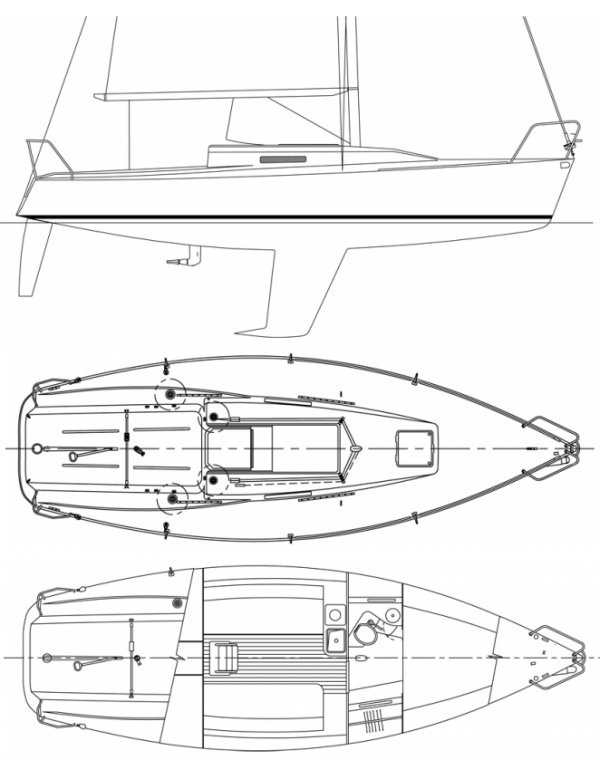

The J92 is a 30.0ft fractional sloop designed by Rod Johnstone and built in fiberglass by J Boats between 1992 and 2003.
180 units have been built.
The J92 is a light sailboat which is a very high performer. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a racing boat. The fuel capacity is originally very small.
Main features
| Model | J92 | ||
| Length | 30 ft | ||
| Beam | 10 ft | ||
| Draft | 5.90 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 24.21 | ||
| Ballast / displ. | 41.36 % | ||
| Displ. / length | 142.97 | ||
| Comfort ratio | 14.63 | ||
| Capsize | 2.27 |
Hull
| Hull type | Monohull fin keel with bulb and spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 25.80 ft | ||
| Maximum draft | 5.90 ft | ||
| Displacement | 5500 lbs | ||
| Ballast | 2275 lbs | ||
| Hull speed | 6.81 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 470 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 212.75 sq.ft | ||
| Sail area main | 256.50 sq.ft | ||
| I | 37 ft | ||
| J | 11.50 ft | ||
| P | 38 ft | ||
| E | 13.50 ft |
Engine
| Nb engines | 1 | ||
| Total power | 9 HP | ||
| Fuel capacity | 13 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | J Boats | ||
| Designer | Rod Johnstone | ||
| First built | 1992 | ||
| Last built | 2003 | ||
| Number built | 180 |
