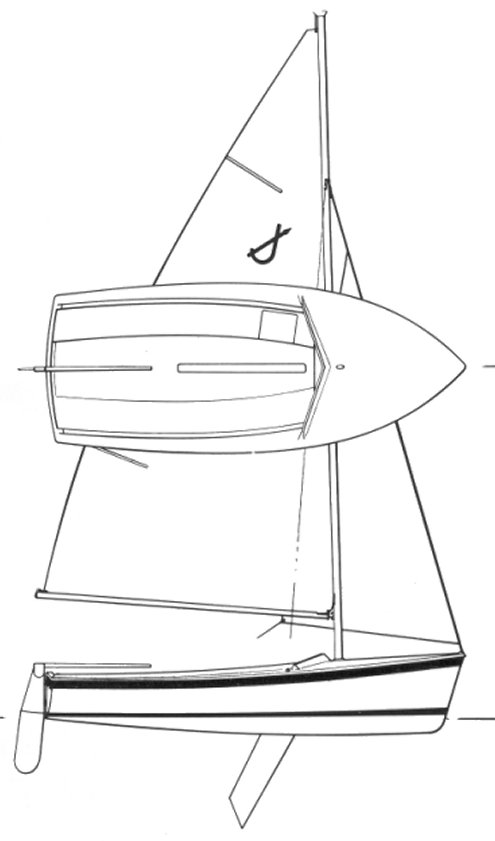

The Javelin 14 fox is a 14.0ft fractional sloop designed by Uffa Fox and built in fiberglass by O'Day Corp. since 1960.
5100 units have been built.
The Javelin 14 fox is an ultralight sailboat which is a very high performer. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a racing boat.
Main features
| Model | Javelin 14 fox | ||
| Length | 14 ft | ||
| Beam | 5.67 ft | ||
| Draft | 0.50 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 32.90 | ||
| Ballast / displ. | 10.32 % | ||
| Displ. / length | 92.83 | ||
| Comfort ratio | 5.42 | ||
| Capsize | 2.91 |
Hull
| Hull type | Centerboard Dinghy | ||
| Construction | Fiberglass | ||
| Waterline length | 13.17 ft | ||
| Maximum draft | 3.83 ft | ||
| Displacement | 475 lbs | ||
| Ballast | 49 lbs | ||
| Hull speed | 4.86 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 125 sq.ft | ||
| Air draft | 23.08 ft | ||
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | O'Day Corp. | ||
| Designer | Uffa Fox | ||
| First built | 1960 | ||
| Last built | 0 | ?? | |
| Number built | 5100 |
