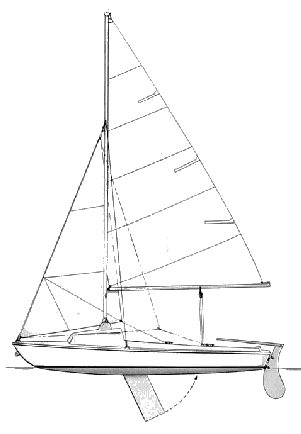

The Leeward 16 luger is a 16.0ft fractional sloop designed by Luger and built in fiberglass by Luger Industries (USA) since 1962.
The Leeward 16 luger is an ultralight sailboat which is a very high performer. It is stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat.
Main features
| Model | Leeward 16 luger | ||
| Length | 16 ft | ||
| Beam | 6.25 ft | ||
| Draft | 1.50 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 29.90 | ||
| Ballast / displ. | 0 % | ||
| Displ. / length | 85.98 | ||
| Comfort ratio | 5.71 | ||
| Capsize | 2.89 |
Hull
| Hull type | Centerboard Dinghy | ||
| Construction | Fiberglass | ||
| Waterline length | 15 ft | ||
| Maximum draft | 2.92 ft | ||
| Displacement | 650 lbs | ||
| Ballast | 0 lbs | ||
| Hull speed | 5.19 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 140 sq.ft | ||
| Air draft | 22 ft | ||
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Luger Industries (USA) | ||
| Designer | Luger | ||
| First built | 1962 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
