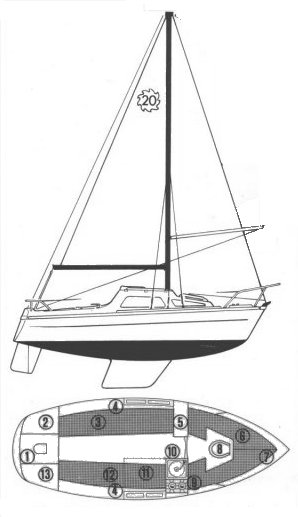

The Leisure 20 is a 19.98ft masthead sloop designed by Horst E. Glacer and built in fiberglass by Leisure Yachts between 1975 and 1984.
250 units have been built.
The Leisure 20 is a moderate weight sailboat which is slightly under powered. It is stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat.
Main features
| Model | Leisure 20 | ||
| Length | 19.98 ft | ||
| Beam | 7.58 ft | ||
| Draft | 2.42 ft | ||
| Country | United Kingdom (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 15.15 | ||
| Ballast / displ. | 36.71 % | ||
| Displ. / length | 210.49 | ||
| Comfort ratio | 15.88 | ||
| Capsize | 2.14 |
Hull
| Hull type | Monohull twin Keel | ||
| Construction | Fiberglass | ||
| Waterline length | 18.25 ft | ||
| Maximum draft | 2.42 ft | ||
| Displacement | 2866 lbs | ||
| Ballast | 1052 lbs | ||
| Hull speed | 5.72 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 190.52 sq.ft | ||
| Air draft | 24 ft | ||
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Leisure Yachts | ||
| Designer | Horst E. Glacer | ||
| First built | 1975 | ||
| Last built | 1984 | ||
| Number built | 250 |
