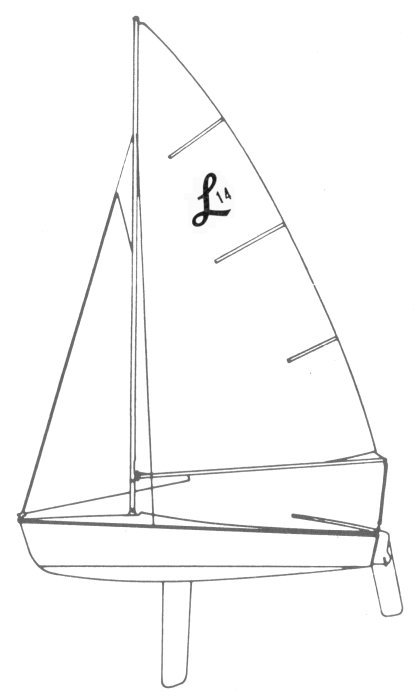

The Lido 14 is a 14.0ft fractional sloop designed by Barney Lehman/W.D. Schock and built in fiberglass by Schock W.D. since 1958.
6100 units have been built.
The Lido 14 is an ultralight sailboat which is a very high performer. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat.
Main features
| Model | Lido 14 | ||
| Length | 14 ft | ||
| Beam | 6 ft | ||
| Draft | 0.42 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 28.32 | ||
| Ballast / displ. | 0 % | ||
| Displ. / length | 53.24 | ||
| Comfort ratio | 3.18 | ||
| Capsize | 3.55 |
Hull
| Hull type | Centerboard Dinghy | ||
| Construction | Fiberglass | ||
| Waterline length | 13.75 ft | ||
| Maximum draft | 4.25 ft | ||
| Displacement | 310 lbs | ||
| Ballast | 0 lbs | ||
| Hull speed | 4.97 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 81 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Schock W.D. | ||
| Designer | Barney Lehman/W.D. Schock | ||
| First built | 1958 | ||
| Last built | 0 | ?? | |
| Number built | 6100 |
