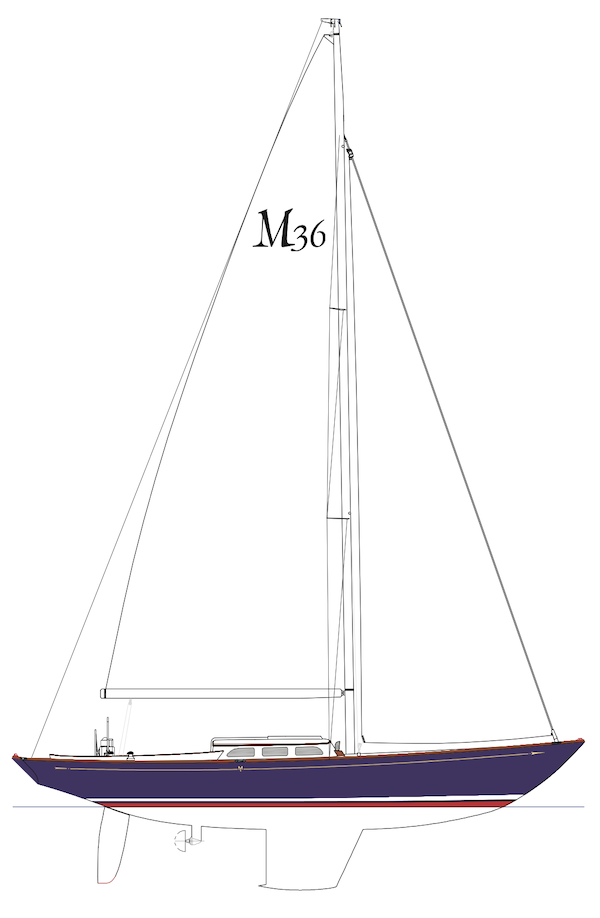

The M36 morris is a 36.08ft fractional sloop designed by Sparkman & Stephens and built in carbon fiber or composite by Morris Yachts since 2004.
The M36 morris is a moderate weight sailboat which is a high performer. It is very stable / stiff and has a good righting capability if capsized. It is best suited as a fast cruiser. The fuel capacity is originally small. There is a very short water supply range.
Main features
| Model | M36 morris | ||
| Length | 36.08 ft | ||
| Beam | 10.08 ft | ||
| Draft | 5.25 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 20.86 | ||
| Ballast / displ. | 42.13 % | ||
| Displ. / length | 251.86 | ||
| Comfort ratio | 22.33 | ||
| Capsize | 1.95 |
Hull
| Hull type | Monohull fin keel with bulb and spade rudder | ||
| Construction | Carbon fiber or composite | ||
| Waterline length | 25.08 ft | ||
| Maximum draft | 5.25 ft | ||
| Displacement | 8900 lbs | ||
| Ballast | 3750 lbs | ||
| Hull speed | 6.71 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 558 sq.ft | ||
| Air draft | 52.17 ft | ||
| Sail area fore | 246.52 sq.ft | ||
| Sail area main | 311.03 sq.ft | ||
| I | 38.67 ft | ||
| J | 12.75 ft | ||
| P | 41.25 ft | ||
| E | 15.08 ft |
Engine
| Nb engines | 1 | ||
| Total power | 21 HP | ||
| Fuel capacity | 20 gals |
Accommodations
| Water capacity | 20 gals | ||
| Headroom | 4.83 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Morris Yachts | ||
| Designer | Sparkman & Stephens | ||
| First built | 2004 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
