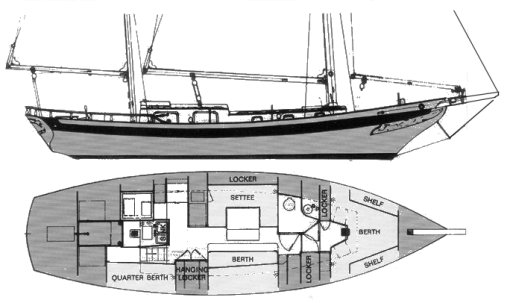

The Mariner 40 garden is a 40.33ft masthead ketch designed by C. Oberly/W. Garden and built in fiberglass by Ta Yang Yacht Building Co. Ltd. since 1965.
The Mariner 40 garden is a very heavy sailboat which is under powered. It is reasonably stable / stiff and has an excellent righting capability if capsized. It is best suited as a heavy bluewater cruising boat. The fuel capacity is average. There is a good water supply range.
Main features
| Model | Mariner 40 garden | ||
| Length | 40.33 ft | ||
| Beam | 11.42 ft | ||
| Draft | 5.67 ft | ||
| Country | Taiwan (Asia) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 13.25 | ||
| Ballast / displ. | 33.96 % | ||
| Displ. / length | 430.80 | ||
| Comfort ratio | 48.11 | ||
| Capsize | 1.54 |
Hull
| Hull type | Monohull long keel | ||
| Construction | Fiberglass | ||
| Waterline length | 30.17 ft | ||
| Maximum draft | 5.67 ft | ||
| Displacement | 26500 lbs | ||
| Ballast | 9000 lbs | ||
| Hull speed | 7.36 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Ketch | ||
| Sail area (100%) | 733 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 378.04 sq.ft | ||
| Sail area main | 318.34 sq.ft | ||
| I | 48.25 ft | ||
| J | 15.67 ft | ||
| P | 41.75 ft | ||
| E | 15.25 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 75 gals |
Accommodations
| Water capacity | 120 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Ta Yang Yacht Building Co. Ltd. | ||
| Designer | C. Oberly/W. Garden | ||
| First built | 1965 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
