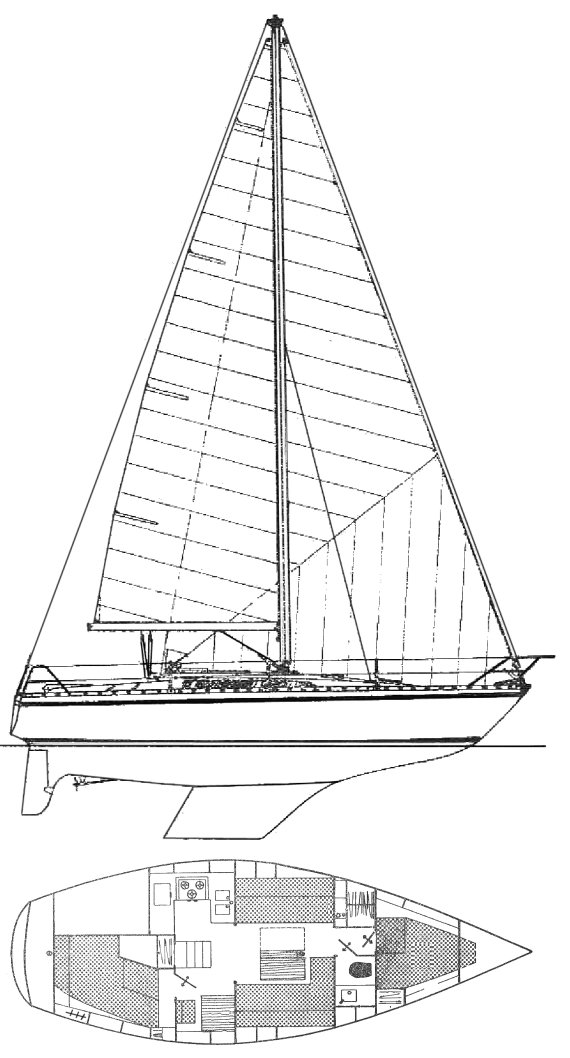

The Melody 34 jeanneau is a 33.63ft masthead sloop designed by Andre Mauric / Gilles Vaton and built in fiberglass by Jeanneau (FRA) between 1974 and 1982.
600 units have been built.
The Melody 34 jeanneau is a moderate weight sailboat which is a reasonably good performer. It is very stable / stiff and has a good righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is originally small. There is a short water supply range.
Main features
| Model | Melody 34 jeanneau | ||
| Length | 33.63 ft | ||
| Beam | 11.09 ft | ||
| Draft | 6.23 ft | ||
| Country | France (Europe) | ||
| Estimated price | $ 28060 |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 16.97 | ||
| Ballast / displ. | 47.96 % | ||
| Displ. / length | 257.07 | ||
| Comfort ratio | 27.83 | ||
| Capsize | 1.87 |
Hull
| Hull type | Monohull fin keel with rudder on skeg | ||
| Construction | Fiberglass | ||
| Waterline length | 28.51 ft | ||
| Maximum draft | 6.23 ft | ||
| Displacement | 13337.95 lbs | ||
| Ballast | 6393.40 lbs | ||
| Hull speed | 7.15 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 596 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 344.12 sq.ft | ||
| Sail area main | 252.31 sq.ft | ||
| I | 46.49 ft | ||
| J | 14.80 ft | ||
| P | 42.39 ft | ||
| E | 11.91 ft |
Engine
| Nb engines | 1 | ||
| Total power | 27 HP | ||
| Fuel capacity | 24 gals |
Accommodations
| Water capacity | 48 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Jeanneau (FRA) | ||
| Designer | Andre Mauric / Gilles Vaton | ||
| First built | 1974 | ||
| Last built | 1982 | ||
| Number built | 600 |
