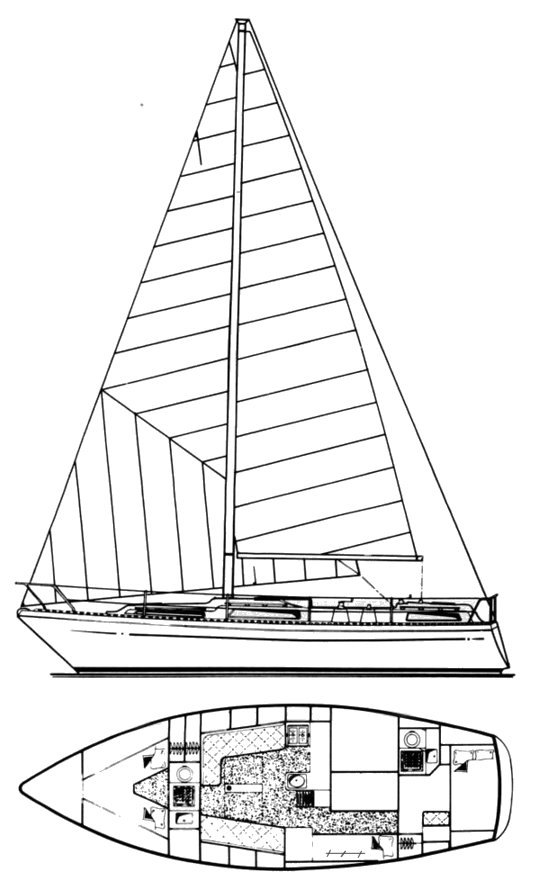

The Moody 36 1 is a 36.0ft masthead sloop designed by Angus Primrose and built in fiberglass by Moody Yachts (A. H. Moody & Sons) between 1977 and 1981.
The Moody 36 1 is a moderate weight sailboat which is under powered. It is reasonably stable / stiff and has a low righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is average. There is a short water supply range.
Main features
| Model | Moody 36 1 | ||
| Length | 36 ft | ||
| Beam | 12.33 ft | ||
| Draft | 5 ft | ||
| Country | United Kingdom (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 13.54 | ||
| Ballast / displ. | 0 % | ||
| Displ. / length | 231.30 | ||
| Comfort ratio | 24.90 | ||
| Capsize | 2.02 |
Hull
| Hull type | Monohull fin keel with rudder on skeg | ||
| Construction | Fiberglass | ||
| Waterline length | 30.50 ft | ||
| Maximum draft | 5 ft | ||
| Displacement | 14700 lbs | ||
| Ballast | 0 lbs | ||
| Hull speed | 7.40 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 506 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 35 HP | ||
| Fuel capacity | 60 gals |
Accommodations
| Water capacity | 72 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Moody Yachts (A. H. Moody & Sons) | ||
| Designer | Angus Primrose | ||
| First built | 1977 | ||
| Last built | 1981 | ||
| Number built | 0 | ?? |
