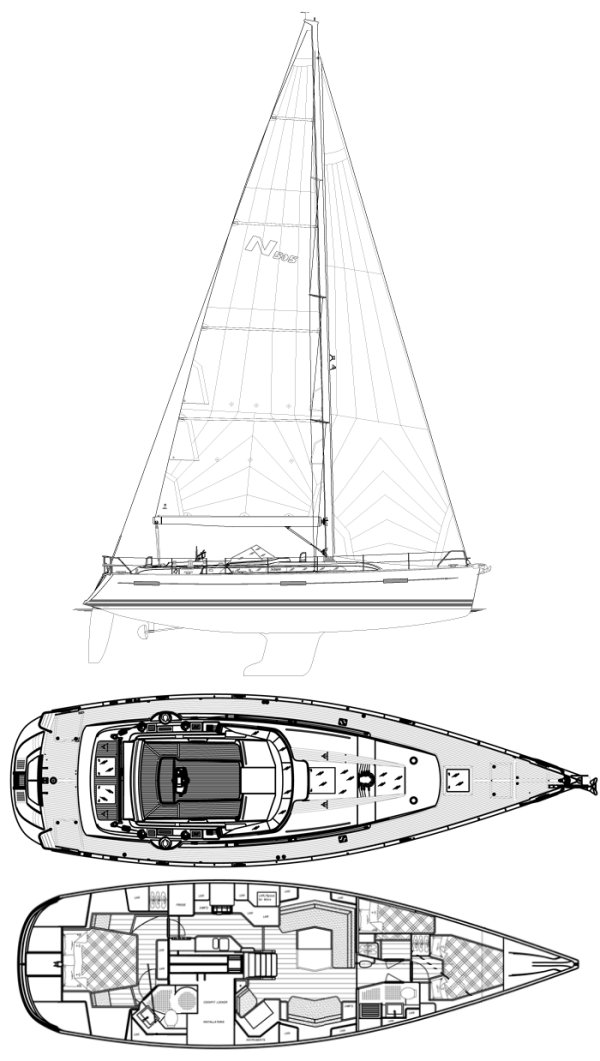

The Najad 505 is a 50.2ft fractional sloop designed by Judel/Vrolijk and built in fiberglass by Najad Yachts (SWE) since 2007.
The Najad 505 is a light sailboat which is a good performer. It is reasonably stable / stiff and has an excellent righting capability if capsized. It is best suited as a bluewater cruising boat. The fuel capacity is good. There is an excellent water supply range.
Main features
| Model | Najad 505 | ||
| Length | 50.20 ft | ||
| Beam | 15.06 ft | ||
| Draft | 8.04 ft | ||
| Country | Sweden (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 18.99 | ||
| Ballast / displ. | 33.49 % | ||
| Displ. / length | 188.76 | ||
| Comfort ratio | 36.70 | ||
| Capsize | 1.74 |
Hull
| Hull type | Monohull fin keel with bulb and spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 46.19 ft | ||
| Maximum draft | 8.04 ft | ||
| Displacement | 41667 lbs | ||
| Ballast | 13955 lbs | ||
| Hull speed | 9.11 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 1420 sq.ft | ||
| Air draft | 74.50 ft | ||
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 107 HP | ||
| Fuel capacity | 190 gals |
Accommodations
| Water capacity | 211 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Najad Yachts (SWE) | ||
| Designer | Judel/Vrolijk | ||
| First built | 2007 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
