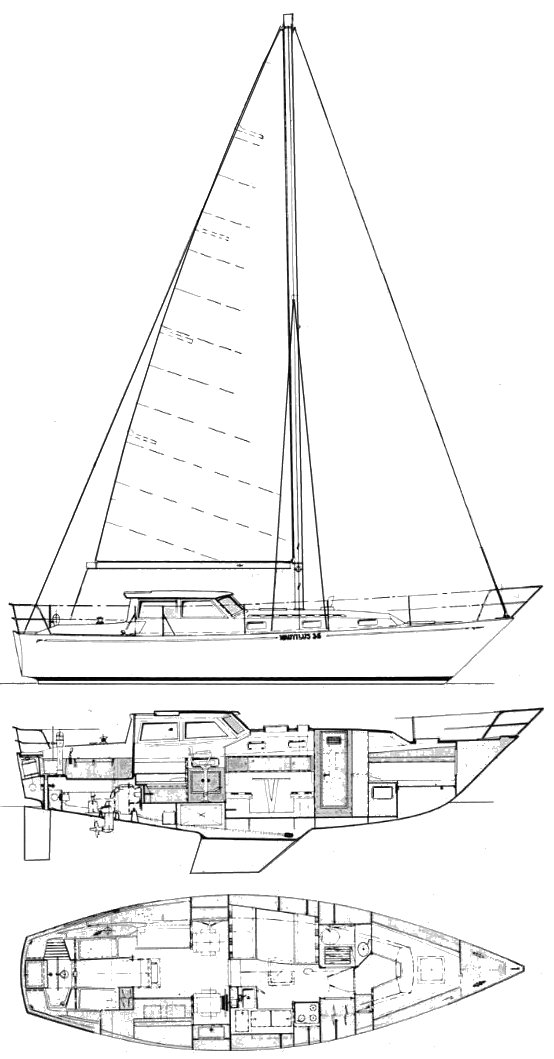

The Nautilus 36 is a 36.75ft masthead sloop designed by Henry Adriaanse and built in fiberglass by Aztec Yachts (CAN) since 1978.
40 units have been built.
The Nautilus 36 is a moderate weight sailboat which is a reasonably good performer. It is very stable / stiff and has a good righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is average. There is a good water supply range.
Main features
| Model | Nautilus 36 | ||
| Length | 36.75 ft | ||
| Beam | 11.50 ft | ||
| Draft | 6.33 ft | ||
| Country | Canada (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 17.18 | ||
| Ballast / displ. | 44.83 % | ||
| Displ. / length | 294.88 | ||
| Comfort ratio | 28.29 | ||
| Capsize | 1.89 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 28 ft | ||
| Maximum draft | 6.33 ft | ||
| Displacement | 14500 lbs | ||
| Ballast | 6500 lbs | ||
| Hull speed | 7.09 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 636 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 348.75 sq.ft | ||
| Sail area main | 287.55 sq.ft | ||
| I | 46.50 ft | ||
| J | 15 ft | ||
| P | 40.50 ft | ||
| E | 14.20 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 50 gals |
Accommodations
| Water capacity | 100 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Aztec Yachts (CAN) | ||
| Designer | Henry Adriaanse | ||
| First built | 1978 | ||
| Last built | 0 | ?? | |
| Number built | 40 |
