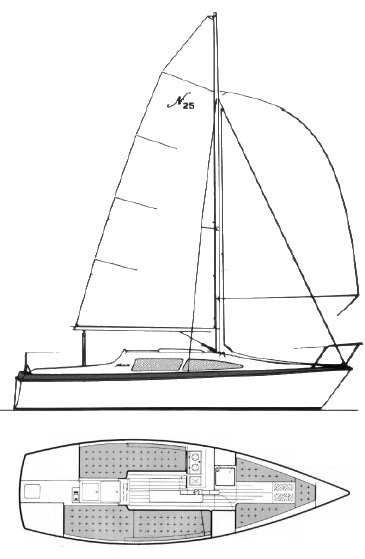

The Noelex 25 is a 25.49ft fractional sloop designed by Noel Honey/Alex Trethewey/Steve Marten and built in fiberglass by Austral Yachts since 1968.
500 units have been built.
The Noelex 25 is a light sailboat which is a good performer. It is reasonably stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat.
Main features
| Model | Noelex 25 | ||
| Length | 25.49 ft | ||
| Beam | 8.20 ft | ||
| Draft | 0.98 ft | ||
| Country | Australia | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 19.51 | ||
| Ballast / displ. | 23.07 % | ||
| Displ. / length | 106.85 | ||
| Comfort ratio | 10.53 | ||
| Capsize | 2.39 |
Hull
| Hull type | Monohull keel with centerboard | ||
| Construction | Fiberglass | ||
| Waterline length | 22.15 ft | ||
| Maximum draft | 4.59 ft | ||
| Displacement | 2601 lbs | ||
| Ballast | 600 lbs | ||
| Hull speed | 6.31 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 230 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Austral Yachts | ||
| Designer | Noel Honey/Alex Trethewey/Steve Marten | ||
| First built | 1968 | ||
| Last built | 0 | ?? | |
| Number built | 500 |
