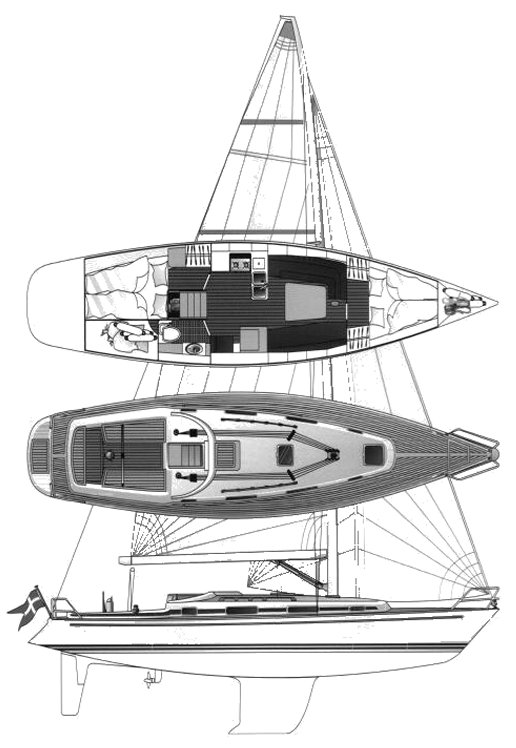

The Nordborg 40 is a 39.34ft fractional sloop designed by Holger B. Jensen and built in fiberglass by Nordborg Baadebyggeri A/S since 2004.
The Nordborg 40 is a moderate weight sailboat which is a good performer. It is stable / stiff and has an excellent righting capability if capsized. It is best suited as a bluewater cruising boat. The fuel capacity is originally small. There is a short water supply range.
Main features
| Model | Nordborg 40 | ||
| Length | 39.34 ft | ||
| Beam | 10.43 ft | ||
| Draft | 6.40 ft | ||
| Country | Denmark (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 18.78 | ||
| Ballast / displ. | 37.04 % | ||
| Displ. / length | 209.78 | ||
| Comfort ratio | 33.39 | ||
| Capsize | 1.62 |
Hull
| Hull type | Monohull fin keel with rudder on skeg | ||
| Construction | Fiberglass | ||
| Waterline length | 33.20 ft | ||
| Maximum draft | 6.40 ft | ||
| Displacement | 17196 lbs | ||
| Ballast | 6369 lbs | ||
| Hull speed | 7.72 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 779 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 40 HP | ||
| Fuel capacity | 42 gals |
Accommodations
| Water capacity | 58 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Nordborg Baadebyggeri A/S | ||
| Designer | Holger B. Jensen | ||
| First built | 2004 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
