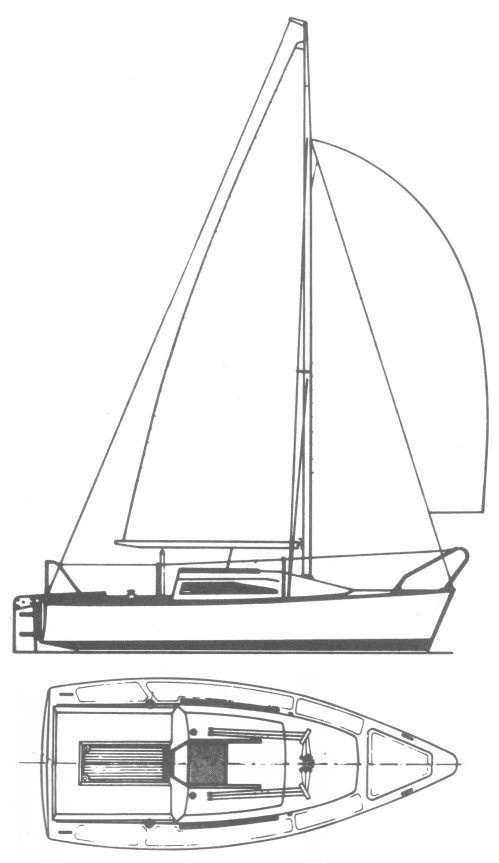

The Bavaria 606 is a 21.33ft fractional sloop designed by Axel Mohnhaupt and built in fiberglass by Bavaria Yachts (GER) since 1982.
The Bavaria 606 is a light sailboat which is a very high performer. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a racing boat.
Main features
| Model | Bavaria 606 | ||
| Length | 21.33 ft | ||
| Beam | 8 ft | ||
| Draft | 4.16 ft | ||
| Country | Germany (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 22.17 | ||
| Ballast / displ. | 42.42 % | ||
| Displ. / length | 179.92 | ||
| Comfort ratio | 10.48 | ||
| Capsize | 2.55 |
Hull
| Hull type | Monohull fin keel with transom hung rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 17 ft | ||
| Maximum draft | 4.16 ft | ||
| Displacement | 1980 lbs | ||
| Ballast | 840 lbs | ||
| Hull speed | 5.52 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 218 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Bavaria Yachts (GER) | ||
| Designer | Axel Mohnhaupt | ||
| First built | 1982 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
