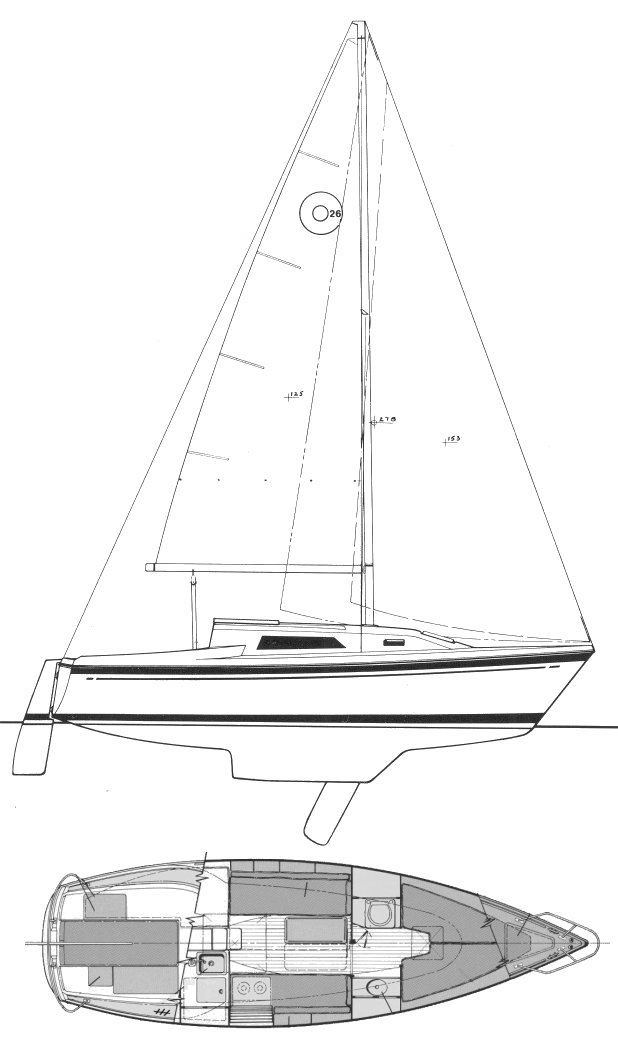

The O'day 26 is a 25.67ft masthead sloop designed by C. Raymond Hunt and Associates and built in fiberglass by O'Day Corp. between 1983 and 1985.
85 units have been built.
The O'day 26 is a moderate weight sailboat which is slightly under powered. It is stable / stiff and has a good righting capability if capsized. It is best suited as a coastal cruiser.
Main features
| Model | O'day 26 | ||
| Length | 25.67 ft | ||
| Beam | 8 ft | ||
| Draft | 2.50 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 15.73 | ||
| Ballast / displ. | 38.54 % | ||
| Displ. / length | 213.23 | ||
| Comfort ratio | 20.38 | ||
| Capsize | 1.90 |
Hull
| Hull type | Monohull keel with centerboard | ||
| Construction | Fiberglass | ||
| Waterline length | 21.58 ft | ||
| Maximum draft | 6 ft | ||
| Displacement | 4800 lbs | ||
| Ballast | 1850 lbs | ||
| Hull speed | 6.22 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 279 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 153.75 sq.ft | ||
| Sail area main | 125 sq.ft | ||
| I | 30 ft | ||
| J | 10.25 ft | ||
| P | 25 ft | ||
| E | 10 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | O'Day Corp. | ||
| Designer | C. Raymond Hunt and Associates | ||
| First built | 1983 | ||
| Last built | 1985 | ||
| Number built | 85 |
