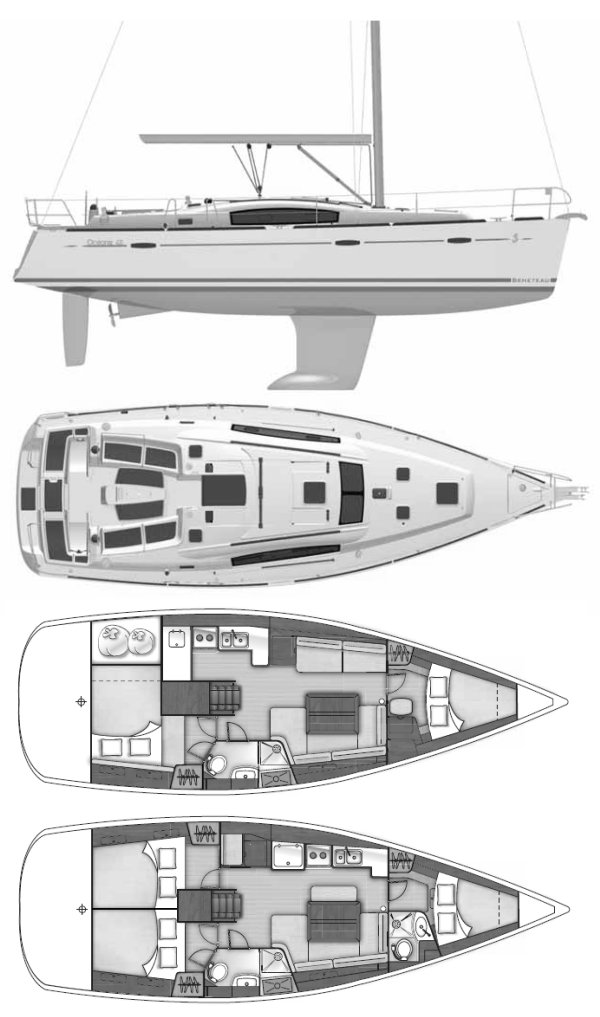

The Oceanis 40 Beneteau is a 39.86ft fractional sloop designed by Berret Racoupeau / Nauta Design and built in fiberglass by Beneteau since 2008.
It accomodates 6 people in 3 cabins plus salon.
The Oceanis 40 Beneteau is a moderate weight sailboat which is slightly under powered. It is reasonably stable / stiff and has a good righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is average. There is a short water supply range.
Main features
| Model | Oceanis 40 Beneteau | ||
| Length | 39.86 ft | ||
| Beam | 12.83 ft | ||
| Draft | 5.09 ft | ||
| Country | France (Europe) | ||
| Estimated price | $ 122850 |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 15.75 | ||
| Ballast / displ. | 28.54 % | ||
| Displ. / length | 207.57 | ||
| Comfort ratio | 26.33 | ||
| Capsize | 1.95 |
Hull
| Hull type | Monohull fin keel with bulb and spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 33.96 ft | ||
| Maximum draft | 6.23 ft | ||
| Displacement | 18210.16 lbs | ||
| Ballast | 5202.90 lbs | ||
| Hull speed | 7.81 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 681.03 sq.ft | ||
| Air draft | 58.10 ft | ||
| Sail area fore | 318.83 sq.ft | ||
| Sail area main | 362.21 sq.ft | ||
| I | 49.21 ft | ||
| J | 12.96 ft | ||
| P | 46 ft | ||
| E | 15.75 ft |
Engine
| Nb engines | 1 | ||
| Total power | 40 HP | ||
| Fuel capacity | 53 gals |
Accommodations
| Water capacity | 95 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 3 | ||
| Nb of berths | 6 | ||
| Nb heads | 2 |
Builder data
| Builder | Beneteau | ||
| Designer | Berret Racoupeau / Nauta Design | ||
| First built | 2008 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
