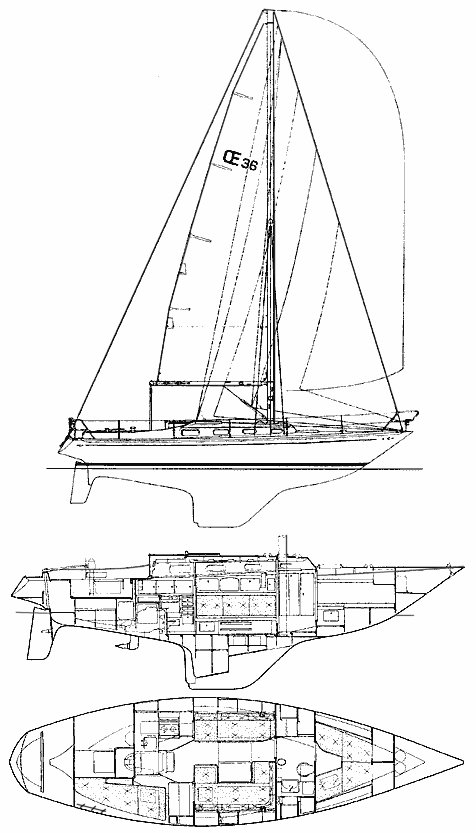

The Oe 36 is a 36.32ft fractional sloop designed by Olle Enderlein and built in fiberglass by Crown Yachts (SWE) between 1977 and 1985.
170 units have been built.
It accomodates 7 people in 2 cabins plus salon.
The Oe 36 is a heavy sailboat which is under powered. It is very stable / stiff and has an excellent righting capability if capsized. It is best suited as a bluewater cruising boat. The fuel capacity is originally small. There is a short water supply range.
Main features
| Model | Oe 36 | ||
| Length | 36.32 ft | ||
| Beam | 10.24 ft | ||
| Draft | 5.91 ft | ||
| Country | Sweden (Europe) | ||
| Estimated price | $ 45140 |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 13.85 | ||
| Ballast / displ. | 43.05 % | ||
| Displ. / length | 340.60 | ||
| Comfort ratio | 30.93 | ||
| Capsize | 1.76 |
Hull
| Hull type | Monohull fin keel with rudder on skeg | ||
| Construction | Fiberglass | ||
| Waterline length | 25.59 ft | ||
| Maximum draft | 5.91 ft | ||
| Displacement | 12786.80 lbs | ||
| Ballast | 5511.55 lbs | ||
| Hull speed | 6.78 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 472 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 269.21 sq.ft | ||
| Sail area main | 203.01 sq.ft | ||
| I | 41.11 ft | ||
| J | 13.09 ft | ||
| P | 36.42 ft | ||
| E | 11.15 ft |
Engine
| Nb engines | 1 | ||
| Total power | 29 HP | ||
| Fuel capacity | 31.70 gals |
Accommodations
| Water capacity | 52.83 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 2 | ||
| Nb of berths | 7 | ||
| Nb heads | 1 |
Builder data
| Builder | Crown Yachts (SWE) | ||
| Designer | Olle Enderlein | ||
| First built | 1977 | ||
| Last built | 1985 | ||
| Number built | 170 |
