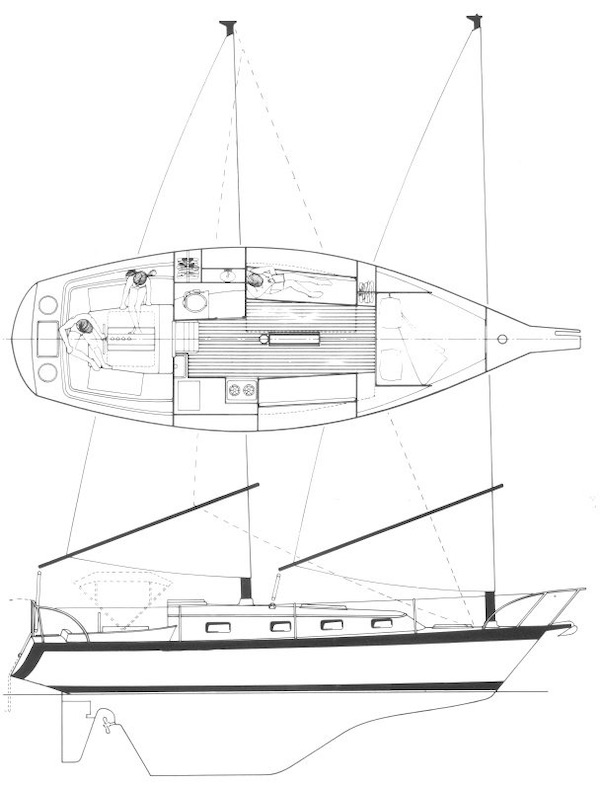

The Offshore 33 scott is a 33.08ft cat ketch (unstayed) designed by Walter Scott and built in fiberglass since 1978.
The Offshore 33 scott is a heavy sailboat which is slightly under powered. It is stable / stiff and has a good righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is originally small. There is a short water supply range.
Main features
| Model | Offshore 33 scott | ||
| Length | 33.08 ft | ||
| Beam | 11 ft | ||
| Draft | 4 ft | ||
| Country | ?? | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 14.16 | ||
| Ballast / displ. | 37.04 % | ||
| Displ. / length | 312.05 | ||
| Comfort ratio | 29.81 | ||
| Capsize | 1.85 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 26.83 ft | ||
| Maximum draft | 4 ft | ||
| Displacement | 13500 lbs | ||
| Ballast | 5000 lbs | ||
| Hull speed | 6.94 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Cat Ketch (unstayed) | ||
| Sail area (100%) | 500 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 235.98 sq.ft | ||
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 38 ft | ||
| E | 12.42 ft |
Engine
| Nb engines | 1 | ||
| Total power | 21 HP | ||
| Fuel capacity | 30 gals |
Accommodations
| Water capacity | 80 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | ?? | ||
| Designer | Walter Scott | ||
| First built | 1978 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
