The Paceship 23 cc is a 23.0ft masthead sloop designed by Cuthbertson & Cassian and built in fiberglass by Paceship Yachts Ltd. between 1969 and 1978.
240 units have been built.
The Paceship 23 cc is a light sailboat which is a high performer. It is stable / stiff and has a low righting capability if capsized. It is best suited as a racing boat.
Main features
| Model | Paceship 23 cc | ||
| Length | 23 ft | ||
| Beam | 8 ft | ||
| Draft | 3.83 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 20.71 | ||
| Ballast / displ. | 39.13 % | ||
| Displ. / length | 149.70 | ||
| Comfort ratio | 11.02 | ||
| Capsize | 2.43 |
Hull
| Hull type | Monohull fin keel with transom hung rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 19 ft | ||
| Maximum draft | 3.83 ft | ||
| Displacement | 2300 lbs | ||
| Ballast | 900 lbs | ||
| Hull speed | 5.84 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt

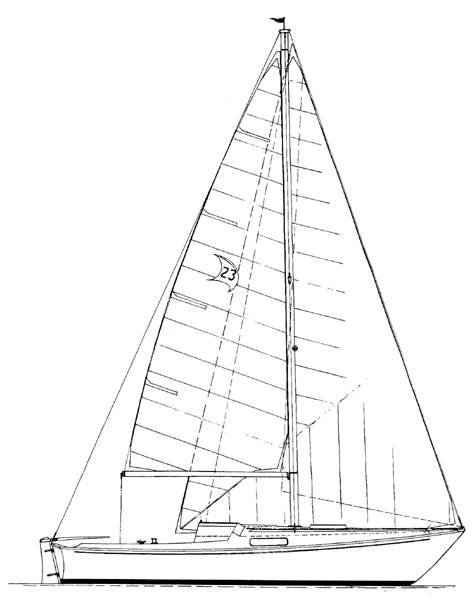

Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 225 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 121.50 sq.ft | ||
| Sail area main | 103.50 sq.ft | ||
| I | 27 ft | ||
| J | 9 ft | ||
| P | 23 ft | ||
| E | 9 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Paceship Yachts Ltd. | ||
| Designer | Cuthbertson & Cassian | ||
| First built | 1969 | ||
| Last built | 1978 | ||
| Number built | 240 |
