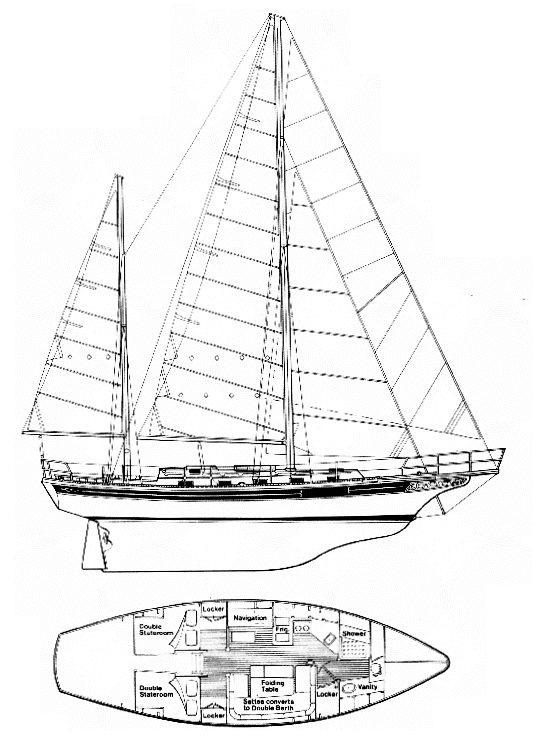

The Bayfield 40 is a 39.5ft staysail ketch designed by Ted Gozzard and built in fiberglass by Bayfield Boat Yard Ltd. (CAN) between 1982 and 1988.
The Bayfield 40 is a heavy sailboat which is a reasonably good performer. It is stable / stiff and has an excellent righting capability if capsized. It is best suited as a bluewater cruising boat. There is a good water supply range.
Main features
| Model | Bayfield 40 | ||
| Length | 39.50 ft | ||
| Beam | 12 ft | ||
| Draft | 4.92 ft | ||
| Country | Canada (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 16.76 | ||
| Ballast / displ. | 39.05 % | ||
| Displ. / length | 330.42 | ||
| Comfort ratio | 35.72 | ||
| Capsize | 1.74 |
Hull
| Hull type | Monohull long keel | ||
| Construction | Fiberglass | ||
| Waterline length | 30.50 ft | ||
| Maximum draft | 4.92 ft | ||
| Displacement | 21000 lbs | ||
| Ballast | 8200 lbs | ||
| Hull speed | 7.40 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Staysail Ketch | ||
| Sail area (100%) | 1009 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 514.28 sq.ft | ||
| Sail area main | 280.13 sq.ft | ||
| I | 52 ft | ||
| J | 19.78 ft | ||
| P | 41.50 ft | ||
| E | 13.50 ft |
Engine
| Nb engines | 1 | ||
| Total power | 44 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 100 gals | ||
| Headroom | 6.25 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Bayfield Boat Yard Ltd. (CAN) | ||
| Designer | Ted Gozzard | ||
| First built | 1982 | ||
| Last built | 1988 | ||
| Number built | 0 | ?? |
