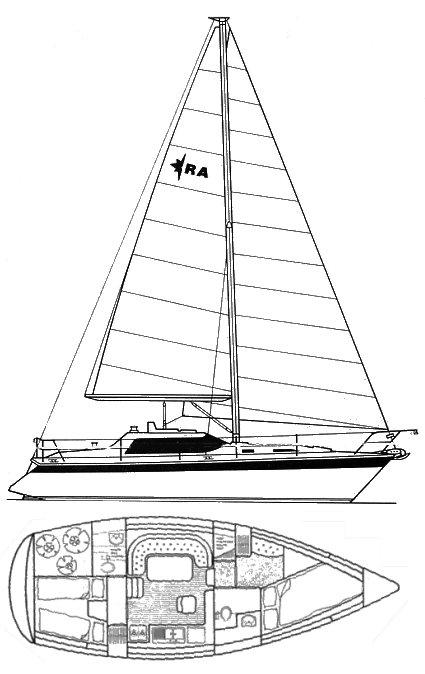

The Riviera 35 westerly is a 34.58ft masthead sloop designed by Ed Dubois and built in fiberglass by Westerly Marine Construction Ltd. between 1988 and 1992.
70 units have been built.
It accomodates 6 people in 2 cabins plus salon.
The Riviera 35 westerly is a heavy sailboat which is slightly under powered. It is stable / stiff and has a good righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is average. There is a short water supply range.
Main features
| Model | Riviera 35 westerly | ||
| Length | 34.58 ft | ||
| Beam | 12.24 ft | ||
| Draft | 4.66 ft | ||
| Country | United Kingdom (Europe) | ||
| Estimated price | $ 40800 |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 15.17 | ||
| Ballast / displ. | 34.78 % | ||
| Displ. / length | 326.54 | ||
| Comfort ratio | 28.21 | ||
| Capsize | 1.98 |
Hull
| Hull type | Monohull fin keel with rudder on skeg | ||
| Construction | Fiberglass | ||
| Waterline length | 27.49 ft | ||
| Maximum draft | 4.66 ft | ||
| Displacement | 15211.88 lbs | ||
| Ballast | 5291.09 lbs | ||
| Hull speed | 7.03 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 579.96 sq.ft | ||
| Air draft | 48.92 ft | ||
| Sail area fore | 348.75 sq.ft | ||
| Sail area main | 242.19 sq.ft | ||
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 28 HP | ||
| Fuel capacity | 55 gals |
Accommodations
| Water capacity | 95 gals | ||
| Headroom | 6.30 ft | ||
| Nb of cabins | 2 | ||
| Nb of berths | 6 | ||
| Nb heads | 2 |
Builder data
| Builder | Westerly Marine Construction Ltd. | ||
| Designer | Ed Dubois | ||
| First built | 1988 | ||
| Last built | 1992 | ||
| Number built | 70 |
