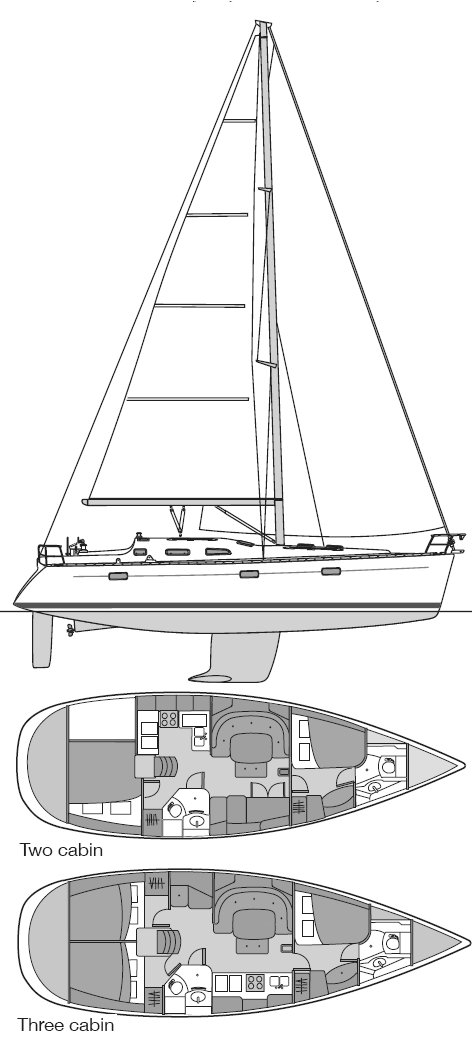

The Beneteau 393 is a 38.16ft masthead sloop designed by Berret Racoupeau Yacht Design and built in fiberglass by Beneteau since 2002.
The Beneteau 393 is a light sailboat which is slightly under powered. It is reasonably stable / stiff and has a low righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is originally small. There is a good water supply range.
Main features
| Model | Beneteau 393 | ||
| Length | 38.16 ft | ||
| Beam | 13 ft | ||
| Draft | 5.08 ft | ||
| Country | France (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 15.41 | ||
| Ballast / displ. | 0 % | ||
| Displ. / length | 177.37 | ||
| Comfort ratio | 24.18 | ||
| Capsize | 2.02 |
Hull
| Hull type | Monohull fin keel with bulb and spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 35.08 ft | ||
| Maximum draft | 5.08 ft | ||
| Displacement | 17152 lbs | ||
| Ballast | 0 lbs | ||
| Hull speed | 7.94 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 638 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 334.08 sq.ft | ||
| Sail area main | 304.09 sq.ft | ||
| I | 46.08 ft | ||
| J | 14.50 ft | ||
| P | 40.33 ft | ||
| E | 15.08 ft |
Engine
| Nb engines | 1 | ||
| Total power | 40 HP | ||
| Fuel capacity | 36 gals |
Accommodations
| Water capacity | 119 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Beneteau | ||
| Designer | Berret Racoupeau Yacht Design | ||
| First built | 2002 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
