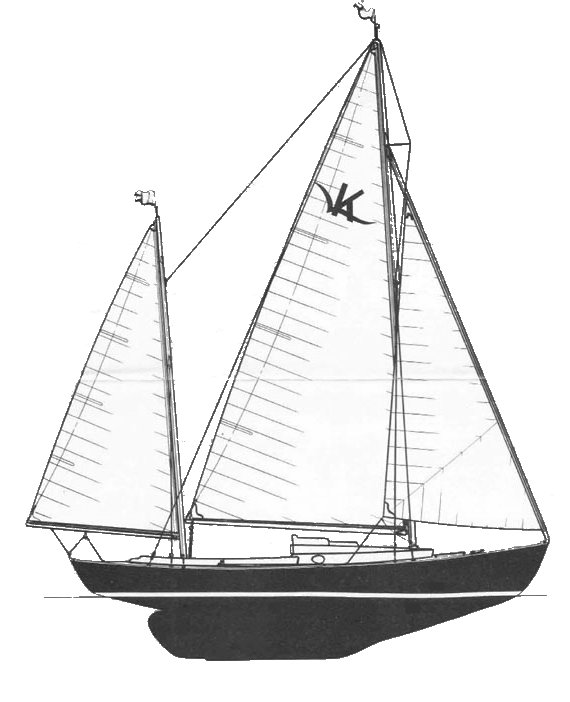

The Rozinante herreshoff is a 28.0ft masthead ketch designed by L. Francis Herreshoff and built in wood or fiberglass by Kenner Boat Company since 1952.
The Rozinante herreshoff is a moderate weight sailboat which is under powered. It is very stable / stiff and has an excellent righting capability if capsized. It is best suited as a bluewater cruising boat.
Main features
| Model | Rozinante herreshoff | ||
| Length | 28 ft | ||
| Beam | 6.33 ft | ||
| Draft | 3.75 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 12.38 | ||
| Ballast / displ. | 51.30 % | ||
| Displ. / length | 211.52 | ||
| Comfort ratio | 34.36 | ||
| Capsize | 1.36 |
Hull
| Hull type | Monohull long keel | ||
| Construction | Wood or fiberglass | ||
| Waterline length | 24 ft | ||
| Maximum draft | 3.75 ft | ||
| Displacement | 6550 lbs | ||
| Ballast | 3360 lbs | ||
| Hull speed | 6.56 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Ketch | ||
| Sail area (100%) | 270 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 96 sq.ft | ||
| Sail area main | 173.75 sq.ft | ||
| I | 24 ft | ||
| J | 8 ft | ||
| P | 27.80 ft | ||
| E | 12.50 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Kenner Boat Company | ||
| Designer | L. Francis Herreshoff | ||
| First built | 1952 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
