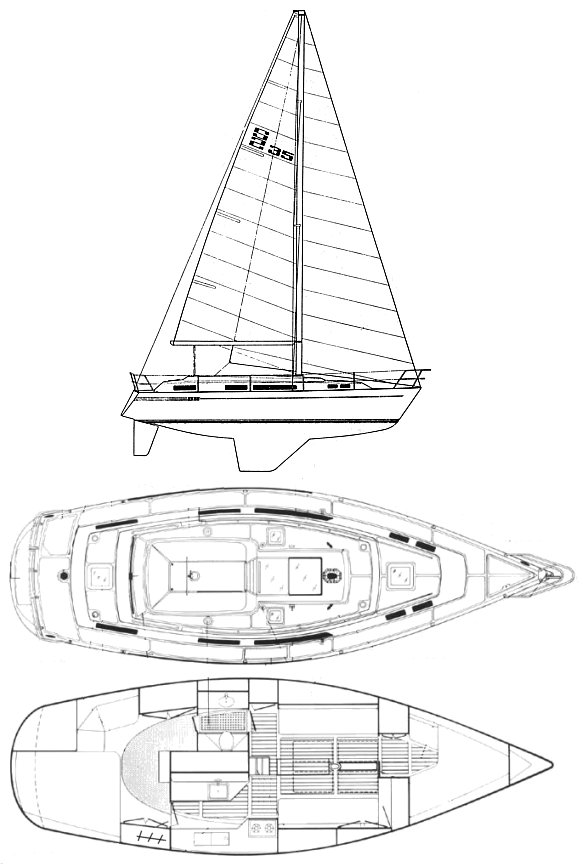

The S2 35c is a 35.17ft masthead sloop designed by Graham & Schlageter and built in fiberglass by S2 Yachts (USA) between 1986 and 1987.
35 units have been built.
The S2 35c is a moderate weight sailboat which is a reasonably good performer. It is very stable / stiff and has a good righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is originally small. There is a short water supply range.
Main features
| Model | S2 35c | ||
| Length | 35.17 ft | ||
| Beam | 11.50 ft | ||
| Draft | 4.25 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 16.42 | ||
| Ballast / displ. | 43.57 % | ||
| Displ. / length | 274.88 | ||
| Comfort ratio | 27.53 | ||
| Capsize | 1.91 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 28.33 ft | ||
| Maximum draft | 4.25 ft | ||
| Displacement | 14000 lbs | ||
| Ballast | 6100 lbs | ||
| Hull speed | 7.13 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 594 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 319.50 sq.ft | ||
| Sail area main | 274.56 sq.ft | ||
| I | 45 ft | ||
| J | 14.20 ft | ||
| P | 38.67 ft | ||
| E | 14.20 ft |
Engine
| Nb engines | 1 | ||
| Total power | 28 HP | ||
| Fuel capacity | 32 gals |
Accommodations
| Water capacity | 70 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | S2 Yachts (USA) | ||
| Designer | Graham & Schlageter | ||
| First built | 1986 | ||
| Last built | 1987 | ||
| Number built | 35 |
