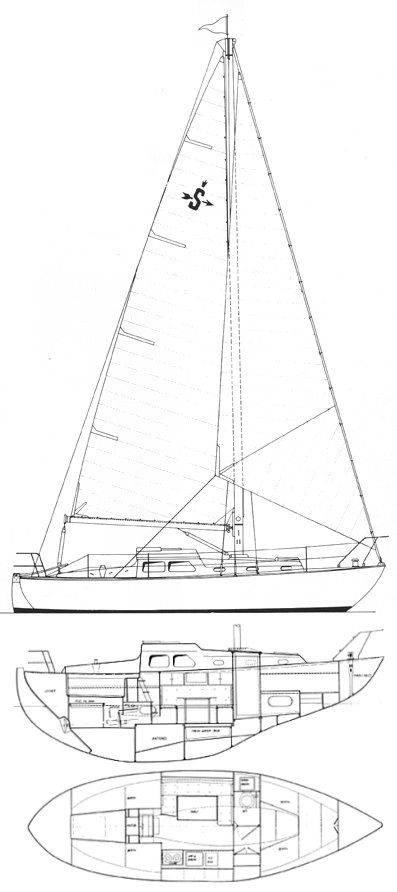

The Sagitta 30 is a 30.02ft masthead sloop designed by Aage Utzon and built in fiberglass between 1963 and 1991.
40 units have been built.
The Sagitta 30 is a moderate weight sailboat which is under powered. It is very stable / stiff and has an excellent righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is originally very small. There is a very short water supply range.
Main features
| Model | Sagitta 30 | ||
| Length | 30.02 ft | ||
| Beam | 9 ft | ||
| Draft | 4.75 ft | ||
| Country | ?? | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 13.94 | ||
| Ballast / displ. | 44.28 % | ||
| Displ. / length | 296.07 | ||
| Comfort ratio | 29.64 | ||
| Capsize | 1.72 |
Hull
| Hull type | Monohull long keel with transom hung rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 24.08 ft | ||
| Maximum draft | 4.75 ft | ||
| Displacement | 9260 lbs | ||
| Ballast | 4100 lbs | ||
| Hull speed | 6.58 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 383 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 226.30 sq.ft | ||
| Sail area main | 156.75 sq.ft | ||
| I | 36.50 ft | ||
| J | 12.40 ft | ||
| P | 33 ft | ||
| E | 9.50 ft |
Engine
| Nb engines | 1 | ||
| Total power | 29 HP | ||
| Fuel capacity | 11 gals |
Accommodations
| Water capacity | 23 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | ?? | ||
| Designer | Aage Utzon | ||
| First built | 1963 | ||
| Last built | 1991 | ||
| Number built | 40 |
