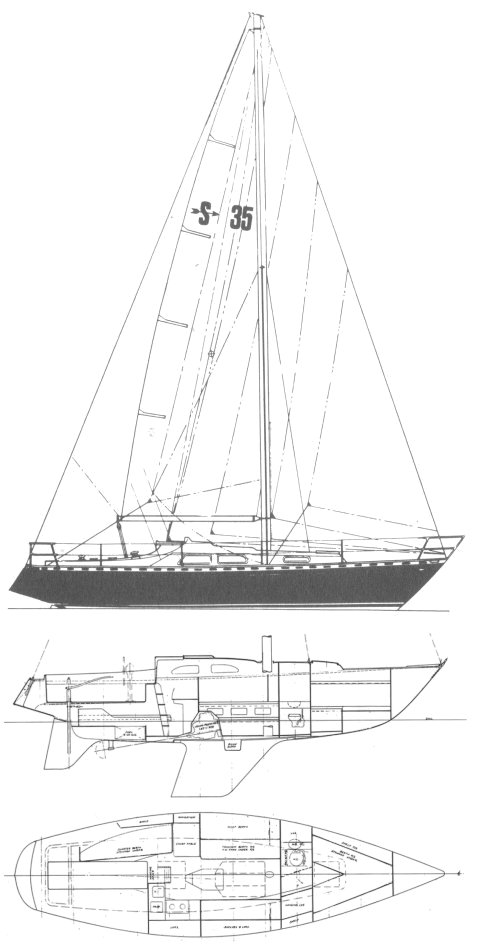

The Sagitta 35 is a 34.5ft masthead sloop designed by Sparkman & Stephens and built in fiberglass by Bianca Yachts between 1969 and 1976.
The Sagitta 35 is a moderate weight sailboat which is a reasonably good performer. It is very stable / stiff and has a good righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is originally small. There is a very short water supply range.
Main features
| Model | Sagitta 35 | ||
| Length | 34.50 ft | ||
| Beam | 10 ft | ||
| Draft | 6 ft | ||
| Country | Denmark (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 17.60 | ||
| Ballast / displ. | 55.93 % | ||
| Displ. / length | 274.89 | ||
| Comfort ratio | 26.05 | ||
| Capsize | 1.85 |
Hull
| Hull type | Monohull fin keel with rudder on skeg | ||
| Construction | Fiberglass | ||
| Waterline length | 25.50 ft | ||
| Maximum draft | 6 ft | ||
| Displacement | 10210 lbs | ||
| Ballast | 5710 lbs | ||
| Hull speed | 6.77 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 516 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 301.62 sq.ft | ||
| Sail area main | 214.52 sq.ft | ||
| I | 44 ft | ||
| J | 13.71 ft | ||
| P | 39.04 ft | ||
| E | 10.99 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 21 gals |
Accommodations
| Water capacity | 32 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Bianca Yachts | ||
| Designer | Sparkman & Stephens | ||
| First built | 1969 | ||
| Last built | 1976 | ||
| Number built | 0 | ?? |
