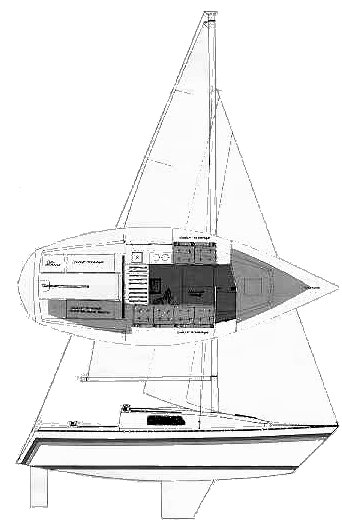

The San juan 77 is a 25.75ft fractional sloop designed by Don Clark and built in fiberglass by Clark Boat Company since 1979.
The San juan 77 is a light sailboat which is a very high performer. It is stable / stiff and has a low righting capability if capsized. It is best suited as a racing boat.
Main features
| Model | San juan 77 | ||
| Length | 25.75 ft | ||
| Beam | 9.50 ft | ||
| Draft | 4 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 22.46 | ||
| Ballast / displ. | 34.38 % | ||
| Displ. / length | 178.57 | ||
| Comfort ratio | 11.35 | ||
| Capsize | 2.58 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 20 ft | ||
| Maximum draft | 4 ft | ||
| Displacement | 3200 lbs | ||
| Ballast | 1100 lbs | ||
| Hull speed | 5.99 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 304 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 131.81 sq.ft | ||
| Sail area main | 165 sq.ft | ||
| I | 27.75 ft | ||
| J | 9.50 ft | ||
| P | 30 ft | ||
| E | 11 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Clark Boat Company | ||
| Designer | Don Clark | ||
| First built | 1979 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
