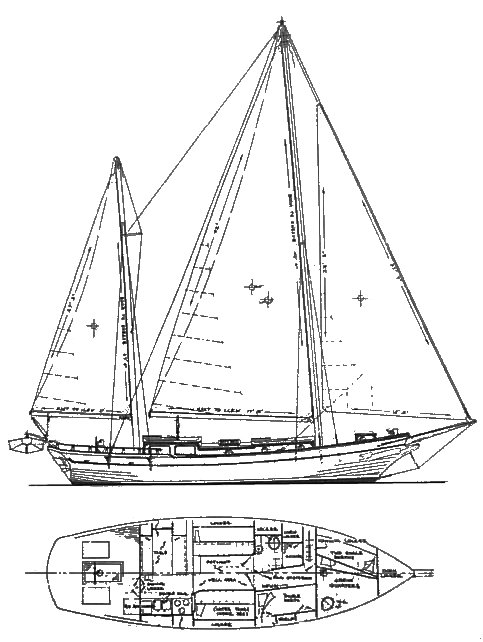

The Sea wolf 40 is a 40.91ft masthead ketch designed by William Garden/W.Hardin and built in wood or fiberglass by Formosa Boat Building Co. Ltd. since 1966.
It accomodates 6 people in 2 cabins plus salon.
The Sea wolf 40 is a heavy sailboat which is slightly under powered. It is reasonably stable / stiff and has an excellent righting capability if capsized. It is best suited as a heavy bluewater cruising boat. The fuel capacity is good. There is a good water supply range.
Main features
| Model | Sea wolf 40 | ||
| Length | 40.91 ft | ||
| Beam | 12.17 ft | ||
| Draft | 6.17 ft | ||
| Country | Taiwan (Asia) | ||
| Estimated price | $ 45000 |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 14.58 | ||
| Ballast / displ. | 33.94 % | ||
| Displ. / length | 381.81 | ||
| Comfort ratio | 44.76 | ||
| Capsize | 1.60 |
Hull
| Hull type | Monohull long keel | ||
| Construction | Wood or fiberglass | ||
| Waterline length | 31.99 ft | ||
| Maximum draft | 6.17 ft | ||
| Displacement | 27998.67 lbs | ||
| Ballast | 9501.91 lbs | ||
| Hull speed | 7.58 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Ketch | ||
| Sail area (100%) | 840.01 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 50 HP | ||
| Fuel capacity | 100 gals |
Accommodations
| Water capacity | 140 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 2 | ||
| Nb of berths | 6 | ||
| Nb heads | 1 |
Builder data
| Builder | Formosa Boat Building Co. Ltd. | ||
| Designer | William Garden/W.Hardin | ||
| First built | 1966 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
