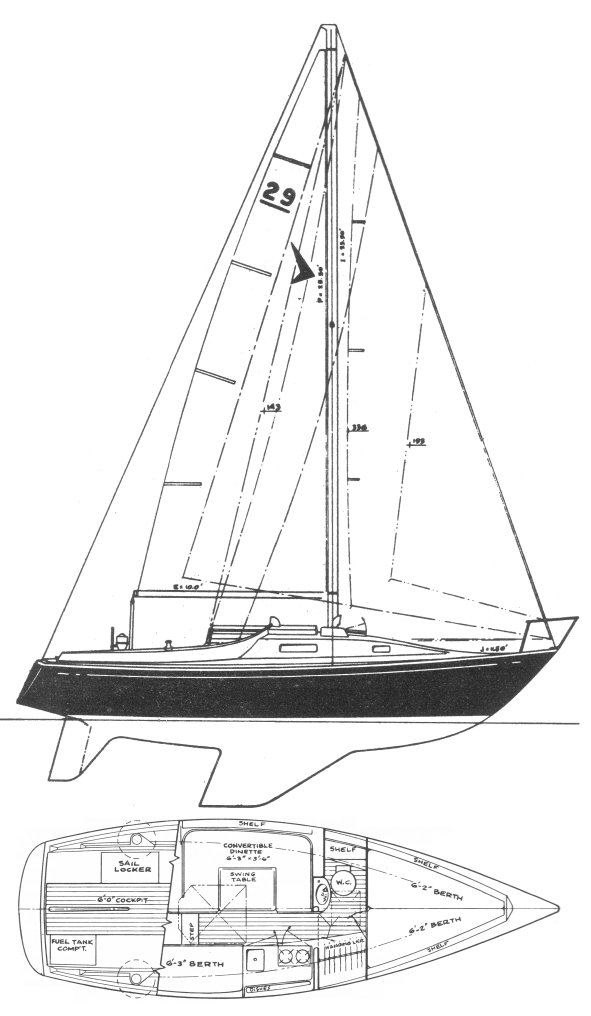

The Seafarer 29 is a 28.7ft masthead sloop designed by McCurdy & Rhodes and built in fiberglass by Seafarer Yachts since 1972.
The Seafarer 29 is a heavy sailboat which is a reasonably good performer. It is stable / stiff and has a good righting capability if capsized. It is best suited as a coastal cruiser.
Main features
| Model | Seafarer 29 | ||
| Length | 28.70 ft | ||
| Beam | 9 ft | ||
| Draft | 4.50 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 16.27 | ||
| Ballast / displ. | 38.73 % | ||
| Displ. / length | 307.52 | ||
| Comfort ratio | 23.30 | ||
| Capsize | 1.92 |
Hull
| Hull type | Monohull fin keel with rudder on skeg | ||
| Construction | Fiberglass | ||
| Waterline length | 21.25 ft | ||
| Maximum draft | 4.50 ft | ||
| Displacement | 6610 lbs | ||
| Ballast | 2560 lbs | ||
| Hull speed | 6.18 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 357 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 192.63 sq.ft | ||
| Sail area main | 163.88 sq.ft | ||
| I | 33.50 ft | ||
| J | 11.50 ft | ||
| P | 28.50 ft | ||
| E | 11.50 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Seafarer Yachts | ||
| Designer | McCurdy & Rhodes | ||
| First built | 1972 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
