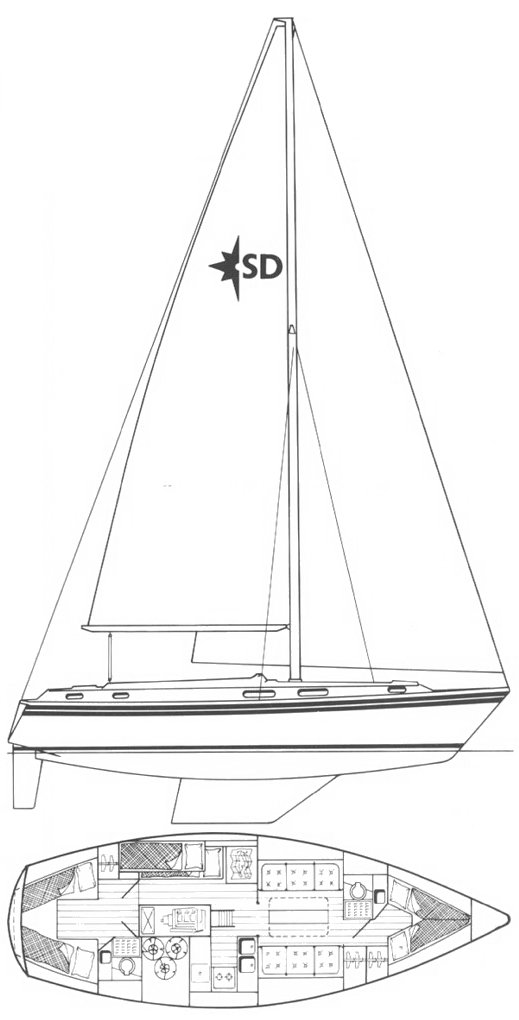

The Sealord 39 westerly is a 38.5ft masthead sloop designed by Ed Dubois and built in fiberglass by Westerly Marine Construction Ltd. between 1983 and 1987.
42 units have been built.
The Sealord 39 westerly is a moderate weight sailboat which is a reasonably good performer. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is originally small. There is a good water supply range.
Main features
| Model | Sealord 39 westerly | ||
| Length | 38.50 ft | ||
| Beam | 13.17 ft | ||
| Draft | 5.50 ft | ||
| Country | United Kingdom (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 16.07 | ||
| Ballast / displ. | 43.24 % | ||
| Displ. / length | 240.60 | ||
| Comfort ratio | 26.91 | ||
| Capsize | 2 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 32.50 ft | ||
| Maximum draft | 5.50 ft | ||
| Displacement | 18501 lbs | ||
| Ballast | 8000 lbs | ||
| Hull speed | 7.64 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 700 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 36 HP | ||
| Fuel capacity | 45 gals |
Accommodations
| Water capacity | 100 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Westerly Marine Construction Ltd. | ||
| Designer | Ed Dubois | ||
| First built | 1983 | ||
| Last built | 1987 | ||
| Number built | 42 |
